BNS 33-01Z-2063
Numéro d'article:
101113765
BNS 33-01Z-2063
Numéro d'article:
101113765
| Désignation produit: BNS 33-(1)Z(2)-(3)-(4) |
| (1) | |
| 02 | 2 contacts NF |
| 11 | 1 contact NO / 1 contact NF |
| 12 | 1 contact NO / 2 contacts NF |
| (2) | |
| Sans | Sans indication d'état par LED |
| G | Avec indication d'état par LED |
| (3) | |
| Sans | avec câble |
| ST | avec connecteur M8 |
| (4) | |
| 2187 | Contacts câblés individuellement |
| 2187-10 | Contacts câblés individuellement, avec LED |
| 2237 | Actionnement dans la direction du câble |
Il est possible que certains appareils suivant cet exemple de commande ne soient pas livrables et/ou techniquement réalisables.
- Thermoplastic enclosure
- Concealed mounting possible
- Insensitive to transverse misalignment
- 88 mm x 25 mm x 13 mm
- Long life
- no mechanical wear
- Insensitive to soiling
Ordering data
| Product type description |
BNS 33-01Z-2063 |
| Article number (order number) |
101113765 |
| EAN (European Article Number) |
4030661050089 |
| eCl@ss number, version 12.0 |
27-27-44-01 |
| eCl@ss number, version 11.0 |
27-27-24-02 |
| eCl@ss number, version 9.0 |
27-27-24-02 |
| ETIM number, version 7.0 |
EC002544 |
| ETIM number, version 6.0 |
EC002544 |
Approvals - Standards
| Certificates |
cULus |
General data
| Standards |
BG-GS-ET-14 EN IEC 60947-5-3 |
| Coding level according to EN ISO 14119 |
faible |
| Working principle |
magnétique |
| Installation conditions (mechanical) |
non affleuré |
| Housing material |
Plastique, thermoplastique renforcé de fibres de verre |
| Gross weight |
54 g |
General data - Features
| Coding |
Oui |
| Prerequisite evaluation unit |
Oui |
| Number of normally closed (NC) |
1 |
| Number of normally open (NO) |
1 |
| Safety classification |
| Vorschriften |
EN ISO 13849-1 |
| Mission time |
20 Year(s) |
Safety classification - Safety outputs
| B10D- Value Normally-closed contact/Normally open contact (NC/NO) |
25 000 000 Operations |
Mechanical data
| Active area |
latéral |
| Actuating element |
Aimant |
| Direction of motion |
Frontale par rapport à la face active |
Mechanical data - Switching distances
| Assured switching distance "ON" Sao |
5 mm 8 mm |
| Assured switching distance "OFF" Sar |
15 mm 18 mm |
| Note (switching distance) |
All switching distances in accordance EN IEC 60947-5-3 |
| Note (Repeat accuracy R) |
Repeat accuracy R ≤ 0,1 x Sao |
Mechanical data - Connection technique
| Length of cable |
1 m |
| Termination |
câble |
| Wire cross-section |
0,25 mm2 |
| Wire cross-section |
23 AWG |
| Material of the Cable mantle |
PVC |
Mechanical data - Dimensions
| Length of sensor |
13 mm |
| Width of sensor |
88 mm |
| Height of sensor |
25 mm |
Ambient conditions
| Degree of protection |
IP67 |
| Ambient temperature |
-25 ... +70 °C |
| Storage and transport temperature |
-25 ... +70 °C |
| Resistance to vibrations |
10…55 Hz, amplitude 1 mm |
| Restistance to shock |
30 g / 11 ms |
Electrical data
| Switching voltage, maximum |
120 VAC |
| Switching voltage, maximum |
100 VDC |
| Switching current, maximum |
0,4 A |
| Switching capacity, maximum |
10 W |
| Switching element |
1 contacts NF 1 contact NO, 1 contact NF |
| Switching frequency, maximum |
5 Hz |
Electrical data - Digital Output
| Design of control elements |
Autres, contact Reed |
Scope of delivery
| Scope of delivery |
Actuator must be ordered separately. |
Accessory
| Recommendation (actuator) |
BPS 33-2326 BPS 33 |
| Recommended safety switchgear |
SRB-E-301ST SRB-E-201LC |
Note
| Note (General) |
Symboles des contacts, protecteur fermé. La configuration des contacts pour les versions avec ou sans LED est identique. |
Filtre de langue
Fiches techniques
Mode d'emploi et déclaration de conformité
Certificat UL
Bibliothèque/Library SISTEMA-VDMA
Télécharger la dernière version d'Adobe Reader

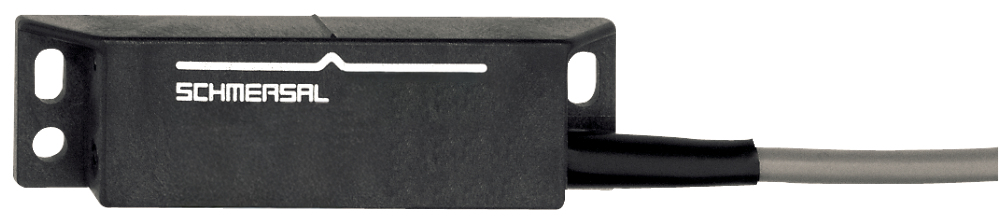

Photo du produit (photo individuelle de catalogue)
Plan d'encombrement composant de base
Diagramme de contact
Surveillance du verrouillage Selon ISO 14119
contact NF à manoeuvre positive d'ouverture
actionné
non actionné
contact NO
contact NF
Courbe caractéristique
Accessoires
101158893 SPACER BN 31 / BNS 33
- to mount the magnetic safety sensor and actuator on ferromagnetic material
Module de sécurité
103009970 SRB-E-201LC
- Plug-in screw terminals with coding
- STOP 0 Function
- 1 oder 2-channel control
- Start button / Auto-start
- 2 Safety outputs 2 A
- 1 Signalling output
103009973 SRB-E-204ST
- Plug-in screw terminals with coding
- STOP 0 Function
- Monitoring of 4 sensors
- Start button / Auto-start
- 2 Safety outputs
- 4 Signalling outputs
103007672 SRB-E-301ST
- Plug-in screw terminals with coding
- STOP 0 Function
- 1 oder 2-channel control
- Start button / Auto-start
- 1 Auxiliary contact
- 3 safety contacts
Actionneur
| EU Declaration of Conformity |  |
| Original | K.A. Schmersal GmbH & Co. KG Möddinghofe 30 42279 Wuppertal Germany Internet: www.schmersal.com |
| Declaration: | We hereby certify that the hereafter described components both in their basic design and construction conform to the applicable European Directives. |
| Name of the component: | BNS 33 |
| Type: | See ordering code |
| Description of the component: | Coded safety-sensor with magnetic operating principle in combination with the SRB(-E) / PROTECT-SELECT / PSC1 safety-monitoring modules from Schmersal or an equivalent safety-oriented control system fulfilling the requirements of the EN 60947-5-3. |
| Relevant Directives: | Machinery Directive | 2006/42/EC |
| RoHS-Directive | 2011/65/EU |
| Applied standards: | EN 60947-5-3:2013 EN ISO 14119:2013 |
| Person authorised for the compilation of the technical documentation: | Oliver Wacker Möddinghofe 30 42279 Wuppertal |
| Ort und Datum der Ausstellung: | Wuppertal, November 15, 2022 |
 |
| Authorised signature Philip Schmersal Managing Director |
| UK Declaration of Conformity | |
| Company: | K.A. Schmersal GmbH & Co. KG Möddinghofe 30 42279 Wuppertal Germany Internet: www.schmersal.com |
| Declaration: | We hereby, under sole responsibility, certify that the hereafter described components both in their basic design and construction conform to the relevant statutory requirements, regulations and designated standards of the United Kingdom. |
| Name of the component: | BNS 33 |
| Type: | See ordering code |
| Description of the component: | Coded safety-sensor with magnetic operating principle in combination with the SRB(-E) / PROTECT-SELECT / PSC1 safety-monitoring modules from Schmersal or an equivalent safety-oriented control system fulfilling the requirements of the EN 60947-5-3. |
| Relevant legislation: | Supply of Machinery (Safety) Regulations | 2008 |
| The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations | 2012 |
| Designated standards: | EN 60947-5-3:2013 EN ISO 14119:2013 |
| UK-Importer / Person authorised for the compilation of the technical documentation: | Schmersal UK Ltd. Paul Kenney Unit 1, Sparrowhawk Close Enigma Business Park Malvern, Worcestershire, WR14 1GL |
| Place and date of issue: | Wuppertal, November 15, 2022 |
|
| Authorised signature Philip Schmersal Managing Director |
Schmersal India Pvt. Ltd., Plot No - G-7/1, Ranjangaon MIDC, Tal. - Shirur, Dist.- Pune 412 220
Les données et les valeurs ont été soigneusement vérifiées. Les illustrations peuvent être différentes de l'original. Vous trouverez d'avantage de caractéristiques techniques dans les manuels d’instructions. Sous réserve de modifications techniques et errata.
