AZM190-11/01RKA-24VDC

Varenummer: 131030129

AZM190-11/01RKA-24VDC

Varenummer: 131030129

Downloads

TraceParts CAD Data

ePlan Data

CADENAS CAD Data

SISTEMA Data

Mengde

Produkt-typebetegnelse:

AZM190-(1)RK(2)(3)-(4)-(5)

(1)
02/01	Magnet: 2 NC-kontakter; nøkkel 1 NC-kontakt
02/02	Magnet: 2 NC-kontakter; nøkkel 2 NC-kontakter
02/10	Magnet: 2 NC-kontakter; nøkkel: 1 NC-kontakt
02/11	Magnet: 2 NC-kontakter; nøkkel: 1 NC-kontakt / 1 NC-kontakt
11/01	Magnet: 1 NC-kontakt / 1 NO-kontakt; nøkkel: 1 NC-kontakt
11/02	Magnet: 1 NC-kontakt / 1 NO-kontakt; nøkkel: 2 NC-kontakter
11/10	Magnet: 1 NC-kontakt / 1 NO-kontakt; nøkkel: 1 NO-kontakt
11/11	Magnet: 1 NC-kontakt / 1 NO-kontakt; nøkkel: 1 NC-kontakt / 1 NO-kontakt

(2)
uten	åpner med spenning
A	driftsspenning

(3)
uten	Med manuell tvangsåpning, dekselsidig
E0	Uten manuell tvangsåpning
E1	Med manuell tvangsåpning på siden (høyre)
N	Nødåpning
T	Nødutgang

(4)
uten	uten lysdiode for brytertilstandsindikasjon
G	Med LED-tilstandsindikator (bare for 24 VAC/DC, kan ikke kombineres med -E1 og -T)

(5)
24VAC	Us: 24 VAC
24VDC	Us: 24 VDC
48VAC	Us: 48 VAC
110VAC	Us: 110 VAC
230VAC	Us: 230 VAC

Ikke alle mulige maskiner med denne typenøkkelen kan leveres og/eller er teknisk omsettelige.

Manual release
Thermoplastic enclosure
Long life
Interlock with protection against incorrect locking.
89 mm x 178 mm x 41 mm
Actuating head can be repositioned by 4 x 90°
2 cable entries M 20 x 1.5
Wiring compartment
Slim design, particularly suitable for fitting on hinged doors, aluminium profiles and fencing
Sealing mechanism to prevent the ingress of dirt
Cut clamp termination

Ordering data

Replacement article number	101030129
Product type description	AZM190-11/01RKA-24VDC
Article number (order number)	131030129
EAN (European Article Number)	8905236105685
eCl@ss number, version 12.0	27-27-26-03
eCl@ss number, version 11.0	27-27-26-03
eCl@ss number, version 9.0	27-27-26-03
ETIM number, version 7.0	EC002593
ETIM number, version 6.0	EC002593

Approvals - Standards

Certificates	cULus CCC

General data

Standards	BG-GS-ET-19 EN ISO 13849-1 EN ISO 14119 EN IEC 60947-5-1
Coding level according to EN ISO 14119	lav
Working principle	elektromekanisk
Housing material	Plast, glassfiber forsterket termoplast
Gross weight	500 g

General data - Features

Power to lock	Ja
Manual release	Ja
Number of actuating directions	4
Number of auxiliary contacts	1
Number of safety contacts	1
Number of cable glands	2

Safety classification

Vorschriften	EN ISO 13849-1
Performance Level, up to	c
Category	1
B_10D Normally-closed contact (NC)	2 000 000 Operations
Note	Electrical life on request.
B_10D Normally-open contact (NO)	1 000 000 Operations
Note	at 10% I_e and ohmic load
Mission time	20 Year(s)

Safety classification - Fault exclusion

Please note:	Can be used when fault exclusion for dangerous damage to the 1-channel mechanism is permissible and sufficient protection against manipulation is guaranteed.
Performance Level, up to	d
Category	3
Note	for 2-channel use and with suitable logic unit.
Mission time	20 Year(s)

Mechanical data

Mechanical life, minimum	1 000 000 Operations
Holding force F_Zh in accordance with EN ISO 14119	1 950 N
Holding force F_max, maximum	2 550 N
Latching force	20 N
Positive break force, minimum	20 N
Actuating speed, maximum	0,3 m/s
Mounting	Skruer
Type of the fixing screws	2x M5

Mechanical data - Connection technique

Cable entry	2 x M20 x 1,5
Termination	Skruetilslutning
Cable section, minimum	0,5 mm²
Cable section, maximum	1,5 mm²
Note	Alle indikasjoner om kabelsnittet inkluderer lederhylsene.

Mechanical data - Dimensions

Length of sensor	41 mm
Width of sensor	52 mm
Height of sensor	178 mm

Ambient conditions

Degree of protection	IP65 IP67
Ambient temperature	-25 ... +55 °C
Note (Relative humidity)	ikke kondenserende ikke-ising
Protection class	II

Ambient conditions - Insulation values

Rated insulation voltage U_i	250 VAC
Rated impulse withstand voltage U_imp	4 kV

Electrical data

Thermal test current	4 A
Rated control voltage	24 VDC
Required rated short-circuit current	1 000 A
Electrical power consumption, maximum	8,5 W
Switching element	NO-kontakt, NC-kontakt
Switching principle	slow action, positive break NC contact
Maximale Schalthäufigkeit	1 200 /h
Material of the contacts, electrical	Sølv

Electrical data - Magnet control

Magnet switch-on time	100 %
Test pulse duration, maximum	5 ms
Test pulse interval, minimum	50 ms

Electrical data - Safety contacts

Voltage, Utilisation category AC-15	230 VAC
Current, Utilisation category AC-15	4 A
Voltage, Utilisation category DC-13	24 VDC
Current, Utilisation category DC-13	4 A

Electrical data - Auxiliary contacts

Voltage, Utilisation category AC-15	230 VAC
Current, Utilisation category AC-15	4 A
Voltage, Utilisation category DC-13	24 VDC
Current, Utilisation category DC-13	4 A

Other data

Note (applications)	skyvbar sikkerhetsvern avtakbare vern hengslet beskyttelsesanordning

Scope of delivery

Scope of delivery	Actuator must be ordered separately.

Note

Note (General)	Sperringer med prinsippet kraft til å låse skal bare brukes i spesielle tilfelle etter en nøye evaluering av uhellsrisikoen, ettersom verneinnretningen kan åpnes umiddelbart ved feil på strømtilførselen eller når hovedbryteren er åpnet.
Note (Manual release)	front For vedlikehold, installasjon etc. For manuell frigjøring ved hjelp av trekantnøkkel M3 (inkludert i leveransen)

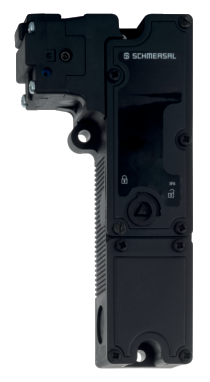

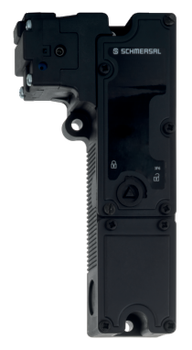

Produktbilde (enkelt katalogbilde)
