AZ 415-33ZPK-M20
Número de artículo:
101164612
AZ 415-33ZPK-M20
Número de artículo:
101164612
| Descripción del tipo de producto: AZ 415-(1)ZPK-(2) |
| (1) | |
| 02/11 | 2 contactos normalmente cerrados (NC) / 1 contacto normalmente abierto (NA), 1 contacto normalmente cerrado (NC) |
| 02/02 | 2 contactos normalmente cerrados (NC) / 2 contactos normalmente cerrados (NC) |
| 02/20 | 2 contactos normalmente cerrados (NC) / 2 contactos normalmente abiertos (NA) |
| 11/11 | 1 contacto NA, 1 contacto NC / 1 contacto NA, 1 contacto NC |
| (2) | |
| 1637 | Contactos dorados |
No todos los equipos posibles según este código de pedidos están disponibles y/o son realizables técnicamente.
- 3 switches with different actuating functions in one enclosure
- 130 mm x 100 mm x 46,5 mm
- Metal enclosure
- Long life
- High level of contact reliability with low voltages and currents
- Adjustable ball latch to 400 N
- 2 cable entries M 20 x 1.5
- Spring-loaded actuators
Ordering data
| Product type description |
AZ 415-33ZPK-M20 |
| Article number (order number) |
101164612 |
| EAN (European Article Number) |
4030661206530 |
| eCl@ss number, version 12.0 |
27-27-26-02 |
| eCl@ss number, version 11.0 |
27-27-26-02 |
| eCl@ss number, version 9.0 |
27-27-26-02 |
| ETIM number, version 7.0 |
EC002592 |
| ETIM number, version 6.0 |
EC002592 |
Approvals - Standards
| Certificates |
cULus CCC |
General data
| Housing material |
Aluminio |
| Housing coating material |
pintado |
| Gross weight |
800 g |
General data - Features
| Increased latching force |
Sí |
| Number of auxiliary contacts |
3 |
| Number of safety contacts |
3 |
| Number of guard doors |
2 |
| Safety classification |
| Vorschriften |
EN ISO 13849-1 |
| Mission time |
20 Year(s) |
Safety classification - Safety outputs
| B10D Normally-closed contact (NC) |
2.000.000 Operations |
| B10D Normally open contact (NO) |
1.000.000 Operations |
| Note (B10D Normally open contact (NO)) |
a 10% Ie y carga resistiva |
Mechanical data
| Mechanical life, minimum |
1.000.000 Operations |
| Latching force, minimum |
80 N |
| Latching force, maximum |
400 N |
| Positive break travel |
4,5 mm |
| Positive break force, minimum |
15 N |
| Actuating speed, maximum |
0,2 m/s |
Mechanical data - Connection technique
| Termination |
Terminales con tornillo M20 x 1.5 |
| Cable section, minimum |
2 x 0,75 mm² |
| Cable section, maximum |
2 x 1,5 mm² |
| Note |
Todas las especificaciones con terminales grimpados incluidos. |
Mechanical data - Dimensions
| Length of sensor |
46,5 mm |
| Width of sensor |
130 mm |
| Height of sensor |
100 mm |
Ambient conditions
| Degree of protection |
IP67 |
| Ambient temperature |
-25 ... +80 °C |
Ambient conditions - Insulation values
| Rated insulation voltage Ui |
250 VAC |
| Rated impulse withstand voltage Uimp |
4 kV |
Electrical data
| Thermal test current |
6 A |
| Utilisation category AC-15 |
230 VAC |
| Utilisation category AC-15 |
4 A |
| Utilisation category DC-13 |
24 VDC |
| Utilisation category DC-13 |
4 A |
| Switching element |
Contacto normalmente abierto (NA), contacto normalmente cerrado (NC) |
| Switching principle |
Acción lenta |
| Material of the contacts, electrical |
Plata |
Scope of delivery
| Scope of delivery |
Actuator must be ordered separately. |
Filtro de idiomas
Ficha técnica
Manual de instrucciones y declaración de conformidad
Certificado UL
Certificado CCC
SISTEMA-VDMA Biblioteca/Library
Descargar la versión actual de Adobe Reader

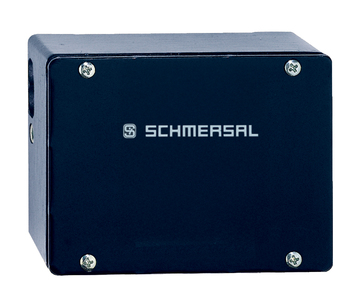

Foto de producto (foto individual de catálogo)
Dibujo dimensional Componente básico
Dibujo dimensional Componente básico
Monitorización del bloqueo según ISO 14119
Contacto NC de apertura forzada
accionado
no accionado
Contacto NA
Contacto NC
Actuador
101128545 ACTUATOR AZ/AZM 415-B1
- For sliding doors
- Actuators with return spring
- Tolerates up to max. 6 mm overtravel
101142540 ACTUATOR AZ/AZM 415-B4PS
- For sliding doors
- with locking bolt and ball latch
101144796 ACTUATOR AZ/AZM 415-B2
- Particularly suitable for hinged guards
- For very smal actuating radii in line with the plane of the actuator
101144797 ACTUATOR AZ/AZM 415-B3
- Particularly suitable for hinged guards
- For very smal actuating radii at 90° to the plane of the actuator
Door handle actuator
Accessories
101160461 LOCKOUT TAG SZ AZ 415-22-1
- Lockout tag with 7 circular holes
- Suitable for mounting inside and outside of the hazardous area
- To prevent inadvertent closing, e.g. during maintenance
- For complex plant
- Prevents actuation of the switch
Declaración de conformidad CE
| EU Declaration of Conformity |  |
| Original | K.A. Schmersal GmbH & Co. KG Möddinghofe 30 42279 Wuppertal Germany Internet: www.schmersal.com |
| Declaration: | We hereby certify that the hereafter described components both in their basic design and construction conform to the applicable European Directives. |
| Name of the component: | AZ 415 |
| Type: | See ordering code |
| Description of the component: | Positive break position switch with separate actuator for safety functions |
| Relevant Directives: | Machinery Directive | 2006/42/EC |
| RoHS-Directive | 2011/65/EU |
| Applied standards: | EN 60947-5-1:2017 EN ISO 14119:2013 |
| Person authorised for the compilation of the technical documentation: | Oliver Wacker Möddinghofe 30 42279 Wuppertal |
| Place and date of issue: | Wuppertal, February 10, 2020 |
 |
| Authorised signature Philip Schmersal Managing Director |
Schmersal India Pvt. Ltd., Plot No - G-7/1, Ranjangaon MIDC, Tal. - Shirur, Dist.- Pune 412 220
Los datos e información anteriores se han verificado cuidadosamente. Las imágenes pueden diferir del original. Se pueden encontrar más datos técnicos en los manuales de instrucciones. Sujeto a cambios técnicos y errores.
