AZ 15 ZVRK-M16

项目编号: 131153619

AZ 15 ZVRK-M16

项目编号: 131153619

下载

追踪备件 CAD数据

计划数据

CADENAS CAD数据

SISTEMA 数据

量

Product type description:

AZ 15 ZV(1)K-(2)-(3)

(1)
without	Ejection force
R	Latching force 30 N

(2)
M16	cable entry M16
M20	Cable entry M20
ST	M12 connector, 4 pole

(3)
2254	Latching force 5 N
1762	Front mounting
1637	Gold-plated contacts

并非所有根据本订单代码可能的组件变体都可用和/或在技术上可行。

3 cable entries M 16 x 1.5
Thermoplastic enclosure
Double-insulated
Long life
52 mm x 75 mm x 30 mm
Universal coding
Large wiring compartment
High level of contact reliability with low voltages and currents
Slotted holes for adjustment, circular holes for location
Insensitive to soiling

Ordering data

Product type description	AZ 15 ZVRK-M16
Article number (order number)	131153619
EAN (European Article Number)	8905236103889
eCl@ss number, version 12.0	27-27-26-02
eCl@ss number, version 11.0	27-27-26-02
eCl@ss number, version 9.0	27-27-26-02
ETIM number, version 7.0	EC002592
ETIM number, version 6.0	EC002592

Approvals - Standards

Certificates	cULus CCC

General data

Standards	EN ISO 13849-1 EN ISO 14119 EN IEC 60947-5-1
Coding level according to EN ISO 14119	低
Working principle	机电
Housing material	塑料，玻璃纤维加固热塑塑料，自熄灭
Gross weight	100 g

General data - Features

Increased latching force	是
Suitable for elevators	是
Number of safety contacts	1
Number of cable glands	3

Safety classification

Vorschriften	EN ISO 13849-1
Mission time	20 Year(s)

Safety classification - Safety outputs

B_10D Normally-closed contact (NC)	2,000,000 Operations

Mechanical data

Mechanical life, minimum	1,000,000 Operations
Latching force	30 N
Positive break travel	8 mm
Positive break force per NC contact, minimum	10 N
Positive break force, minimum	10 N
Actuating speed, maximum	2 m/s
Mounting	螺钉
Type of the fixing screws	2x M6

Mechanical data - Connection technique

Cable entry	3 x M16 x 1,5
Termination	螺丝端子
Cable section, minimum	.25 mm²
Cable section, maximum	2.5 mm²
Note	包括导体套管在内的所有指标。
Allowed type of cable	实心单线实心多导线可调

Mechanical data - Dimensions

Length of sensor	30 mm
Width of sensor	52 mm
Height of sensor	75 mm

Ambient conditions

Degree of protection	IP67
Ambient temperature	-30 ... +80 °C
Storage and transport temperature	-40 ... +85 °C
Permissible installation altitude above sea level, maximum	2,000 m

Ambient conditions - Insulation values

Rated insulation voltage U_i	500 V
Rated impulse withstand voltage U_imp	6 kV
Overvoltage category	III
Degree of pollution	3

Electrical data

Thermal test current	10 A
Required rated short-circuit current	1,000 A
Switching element	1 NC 触点
Switching principle	缓动型，肯定断开常闭触点
Maximale Schalthäufigkeit	4,000 /h
Material of the contacts, electrical	银

Electrical data - Safety contacts

Voltage, Utilisation category AC-15	230 VAC
Current, Utilisation category AC-15	4 A
Voltage, Utilisation category DC-13	24 VDC
Current, Utilisation category DC-13	4 A

Scope of delivery

Scope of delivery	操动件#必须单独订购.

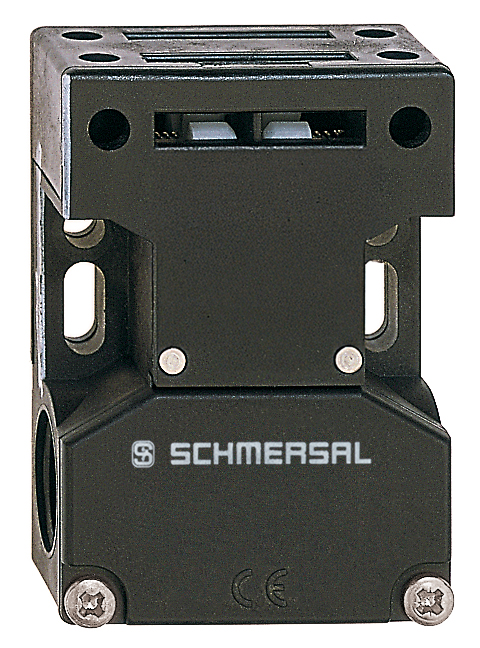

产品图片（单独目录照片）

ID: kaz15f01

| 349,8 kB | .jpg | 169.333 x 228.6 mm - 480 x 648 px - 72 dpi

| 124,1 kB | .png | 74.083 x 99.836 mm - 210 x 283 px - 72 dpi

尺寸图基本组件

ID: 1az15g01

| 39,6 kB | .cdr |

| 3,1 kB | .png | 74.083 x 51.506 mm - 210 x 146 px - 72 dpi

| 61,6 kB | .jpg | 352.778 x 245.181 mm - 1000 x 695 px - 72 dpi

开关行程图

开关行程图信息
ICO_LEG_sw-close 触点关闭
ICO_LEG_sw-open 常开触点
ICO_LEG_sw-var 设置范围
ICO_LEG_sw-l 锁定点
ICO_LEG_sw-p 肯定断开路径/角度
常开触点可调范围
常闭触点可调范围
行程后
所示的闭合和开启触点的切换路线可以转换为其他触点组合。

ID: kaz15s01

| 19,1 kB | .cdr |

| 1,5 kB | .png | 74.083 x 12.7 mm - 210 x 36 px - 72 dpi

| 33,3 kB | .jpg | 352.778 x 60.325 mm - 1000 x 171 px - 72 dpi

图表

图表信息
ICO_LEG_ko-arrow4 电磁锁监控依据EN ISO 14119
ICO_LEG_ko-arrow1 肯定断开常闭触点
ICO_LEG_ko-arrow2 操动
ICO_LEG_ko-arrow3 未操动
ICO_LEG_ko-open 常开触点
ICO_LEG_ko-close 常闭触点

ID: k1o--k01

| 16,8 kB | .cdr |

| 20,8 kB | .jpg | 352.778 x 53.622 mm - 1000 x 152 px - 72 dpi

| 1,5 kB | .png | 74.083 x 11.289 mm - 210 x 32 px - 72 dpi

UK Conformity Declaration

PDF

UK Declaration of Conformity

Company:

Schmersal India Private Limited
G-7/1, MIDC, Ranjangaon
Tal. Shirur, Dist. Pune - 412 220
Maharashtra
India
Internet: www.schmersal.in

Declaration:

We hereby, under sole responsibility, certify that the hereafter described components both in their basic design and construction conform to the relevant statutory requirements, regulations and designated standards of the United Kingdom.

Name of the component:

AZ 15
AZ 16

Type:

See ordering code

Description of the component:

Positive break position switch with separate actuator for safety functions

Relevant legislation:

Supply of Machinery (Safety) Regulations
The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations

2008

2012

Designated standards:

EN 60947-5-1: 2017
ISO 14119: 2013

UK-Importer /
Person authorised for the compilation of the technical documentation:

Schmersal UK Ltd.
Paul Kenney
Unit 1, Sparrowhawk Close
Enigma Business Park
Malvern, Worcestershire, WR14 1GL

Place and date of issue:

Pune, December 20, 2022

Authorised signature
Sagar Jeevan Bhosale
Managing Director

EU Conformity Declaration

PDF

EU Declaration of Conformity

Original

Schmersal India Private Limited
G-7/1, MIDC, Ranjangaon
Tal. Shirur, Dist. Pune – 412 220
Maharashtra
India
Internet: www.schmersal.in

Declaration:

We hereby certify that the hereafter described components both in their basic design and construction conform to the applicable European Directives.

Name of the component:

AZ 15
AZ 16

Type:

See ordering code

Description of the component:

Positive break position switch with separate actuator for safety functions

Relevant Directives:	Machinery Directive	2006/42/EC
	RoHS-Directive	2011/65/EU

Applied standards:

EN 60947-5-1:2017
ISO 14119:2013

Person authorised for the compilation of the technical documentation:

Oliver Wacker
Möddinghofe 30
42279 Wuppertal

Place and date of issue:

Pune, August 3, 2020

Authorised signature
Sagar Jeevan Bhosale
Managing Director

Schmersal India Pvt. Ltd., Plot No - G-7/1, Ranjangaon MIDC, Tal. - Shirur, Dist.- Pune 412 220

所涉及的详细信息和数据已经过仔细检查。图像可能与原始图像有所不同。您可在说明书中进一步获得技术数据。可能会有技术修改和错误。
