TS 355-03Z
品番:
151148309
| 製品タイプの説明: (1)(2) 3(3)-(4)Z(5)-(6)-(7)-(8)-(9) |
| (1) | |
| Z | スナップアクション |
| T | スローアクション |
| (2) | |
| S | プランジャー S |
| R | ローラープランジャー R |
| H | ローラーレバー H |
| 10H | ロッドレバー 10H |
| 7H | ローラーレバー 7H |
| 1K | オフセットローラーレバー 1K |
| 3K | アングルローラーレバー 3K |
| RMS | 真鍮製ローラー |
| (3) | |
| 3 | スリムデザイン |
| 215 | ラージデザイン |
| (4) | |
| 11 | 1 NO 接点 / 1 NC 接点 |
| 02 | 2 NC接点 |
| 20 | 2 NO 接点 (安全用途には不適) |
| 01/01 | 1 NC接点左 / 1 NC接点右 |
| 12 | 1 NO 接点/2 NC 接点 |
| 03 | 3 NC接点 |
| (5) | |
| H | スタッガー接点、スローアクション |
| UE | オーバーラップ接点、スローアクション |
| (6) | |
| G24 | LED付き |
| (7) | |
| なし | ケーブル引込口: M20 |
| M20 | ケーブル引込口 NPT 1/2" |
| NPT | Aコード化付きM12コネクター (注意! EN 60204-1に基づき、コネクター付きのバージョンは、PELV回路でのみ使用しなければなりません。) |
| ST | B-コード化付きM12 コネクター (注意! EN 60204-1に基づき、コネクター付きのバージョンは、PELV回路でのみ使用しなければなりません。) |
| (8) | |
| 2138 | 安全機能付きポジションスイッチ用ローラレバー 7H |
| (9) | |
| 1637 | 金メッキ接点 |
この型式記号に従って組み合わせられる全ての型式が、提供可能あるいは技術的に実現可能ということではありません。
- Metal enclosure
- Wide range of alternative actuators
- Good resistance to oil and petroleum spirit
- 66,7 mm x 76 mm x 38 mm
- Actuator heads can be repositioned by 4 x 90°
- Mounting details to EN 50041
- Switching points to EN 50041
Ordering data
| Product type description |
TS 355-03Z |
| Article number (order number) |
151148309 |
| eCl@ss number, version 12.0 |
27-27-26-01 |
| eCl@ss number, version 11.0 |
27-27-26-01 |
| eCl@ss number, version 9.0 |
27-27-26-01 |
| ETIM number, version 7.0 |
EC000030 |
| ETIM number, version 6.0 |
EC000030 |
General data
| Housing construction form |
標準構造設計 |
| Actuator type to EN 50041 |
B |
| Housing material |
軽金属ダイキャスト |
| Housing coating material |
塗装 |
| Gross weight |
250 g |
General data - Features
| Safety functions |
Yes |
| Safety classification |
| Vorschriften |
EN ISO 13849-1 |
| Mission time |
20 Year(s) |
Safety classification - Safety outputs
| B10D Normally-closed contact (NC) |
20,000,000 Operations |
Mechanical data
| Actuating element |
プランジャー |
| Mechanical life, minimum |
30,000,000 Operations |
| Actuating speed, maximum |
0.5 m/s |
Mechanical data - Connection technique
| Termination |
ネジ端子 M20 x 1.5 |
| Cable section, minimum |
0.75 mm² |
| Cable section, maximum |
2.5 mm² |
| Note |
All indications including the conductor ferrules. |
Mechanical data - connector side B
| Connector typ |
Female connector |
Mechanical data - Dimensions
| Length of sensor |
38 mm |
| Width of sensor |
66.7 mm |
| Height of sensor |
103.5 mm |
Ambient conditions
| Degree of protection |
IP65 IP67 |
| Ambient temperature |
-30 ... +80 °C |
Ambient conditions - Insulation values
| Rated impulse withstand voltage Uimp |
4 kV |
Electrical data
| Thermal test current |
10 A |
| Required rated short-circuit current |
1,000 A |
| Utilisation category AC-15 |
230 VAC |
| Utilisation category AC-15 |
4 A |
| Utilisation category DC-13 |
24 VDC |
| Utilisation category DC-13 |
4 A |
| Switching element |
NO 接点、NC 接点 |
| Switching principle |
スローアクション |
| Maximale Schalthäufigkeit |
5,000 /h |
| Material of the contacts, electrical |
銀 |
言語フィルター
データシート
Operating instructions (supplementary sheet/quick guide)
SISTEMA-VDMA library
Adobe Readerの最新版をダウンロードしてください

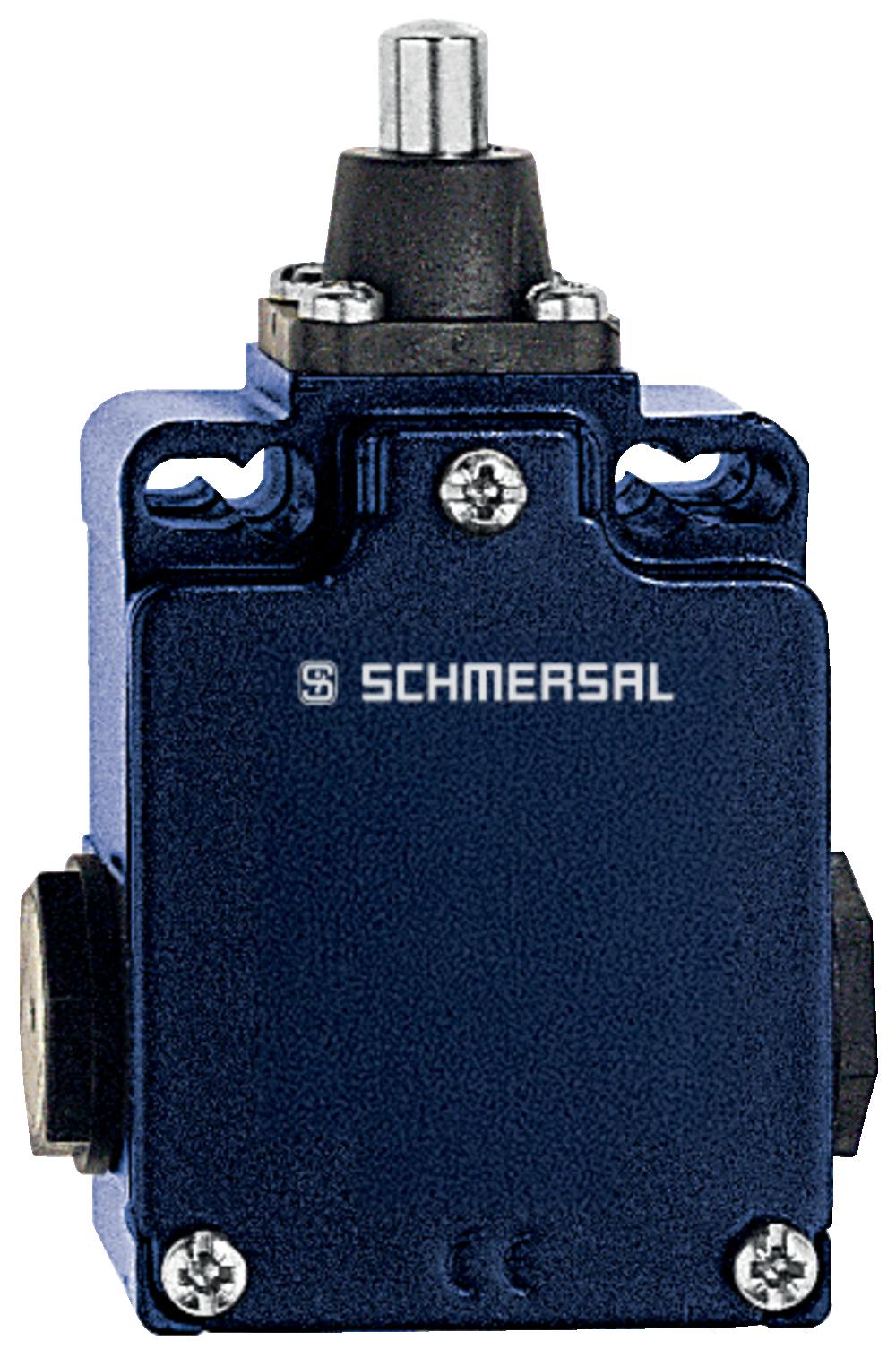

Product picture (catalogue individual photo)
Dimensional drawing basic component
Dimensional drawing actuator
| UK Declaration of Conformity |  |
| Company: | SCHMERSAL Industrial Switchgear (Shanghai) Co., Ltd. Cao Ying Road 3336 201712 Shanghai / Qingpu P.R. CHINA www.schmersal.com.cn |
| Declaration: | We hereby, under sole responsibility, certify that the hereafter described components both in their basic design and construction conform to the relevant statutory requirements, regulations and designated standards of the United Kingdom. |
| Name of the component: | Z/T 235, Z/T 236, Z/T 255, Z/T 256, Z/T 335, Z/T 336, Z/T 355, Z 332 |
| Type: | See ordering code |
| Description of the component: | Position switches |
| Relevant legislation: | Electrical Equipment (Safety) Regulations | 2016 |
| The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations | 2012 |
| Designated standards: | EN 60947-5-1:2017 |
| UK-Importer / Person authorised for the compilation of the technical documentation: | Schmersal UK Ltd. Paul Kenney Unit 1, Sparrowhawk Close Enigma Business Park Malvern, Worcestershire, WR14 1GL |
| Place and date of issue: | Shanghai, November 23, 2021 |
 |
| Authorised signature Michele Seassaro Managing Director |
| EU Declaration of Conformity | |
| Original | SCHMERSAL Industrial Switchgear (Shanghai) Co., Ltd. Cao Ying Road 3336 201712 Shanghai / Qingpu P.R. CHINA Internet: www.schmersal.com.cn |
| Declaration: | We hereby certify that the hereafter described components both in their basic design and construction conform to the applicable European Directives. |
| Name of the component: | Z/T 235, Z/T 236, Z/T 255, Z/T 256, Z/T 335, Z/T 336, Z/T 355, Z 332 |
| Type: | See ordering code |
| Description of the component: | Position switch |
| Relevant Directives: | Low Voltage Directive | 2014/35/EU |
| RoHS-Directive | 2011/65/EU |
| Applied standards: | EN 60947-5-1:2017 |
| Person authorised for the compilation of the technical documentation: | Oliver Wacker Möddinghofe 30 42279 Wuppertal |
| Place and date of issue: | Shanghai, May 5, 2021 |
| |
| Authorised signature Michele Seassaro Managing Director |
