ELDE.NGB24
ELDE.NGB24
Downloads
- Screw connection
- Mounting flange position 3
- yellow LED
- 24 VAC/DC
Ordering data
| Product type description |
ELDE.NGB24 |
| Article number (order number) |
101165998 |
| EAN (European Article Number) |
4250116200672 |
| eCl@ss number, version 12.0 |
27-37-12-09 |
| eCl@ss number, version 11.0 |
27-37-12-09 |
| eCl@ss number, version 9.0 |
27-37-12-09 |
| ETIM number, version 7.0 |
EC000204 |
| ETIM number, version 6.0 |
EC000204 |
Approvals - Standards
| Certificates |
cULus |
General data
| Standards |
EN IEC 60947-5-1 EN IEC 60947-1 |
| Versions |
LED module |
| Design |
With integrated LED |
| Installation conditions (mechanical) |
arbitrarily |
| Housing material |
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing |
| Gross weight |
20 g |
General data - Features
| Integral system diagnostics, general |
Yes |
Mechanical data
| Installation instructions |
pluggable |
| Mounting flange position |
3 |
Mechanical data - Connection technique
| Type of electrical connection |
Screw terminals |
| Terminal designations |
EN 50005 EN 50013 |
| Cable section, minimum |
0.5 mm², rigid 0.5 mm², flexible |
| Cable section, maximum |
2.5 mm², rigid 1.5 mm², flexible |
Mechanical data - Dimensions
| Length |
46 mm |
| Width |
10 mm |
| Depth |
60 mm |
Ambient conditions
| Degree of protection of clips or terminals |
IP20 |
| Ambient temperature |
-25 ... +80 °C |
Ambient conditions - Insulation values
| Rated insulation voltage Ui |
440 V |
Electrical data
| Rated operating voltage |
24 VAC |
| Rated operating voltage |
24 VDC |
| Contact labelling |
X1 - X2 |
Status indication
| Colour of the LED |
Yellow |
| Note (LED switching conditions display) |
Supply voltage UB: 24 VAC/DC |
Language filter
Datasheet
UL Certificate
Download the latest version of Adobe Reader

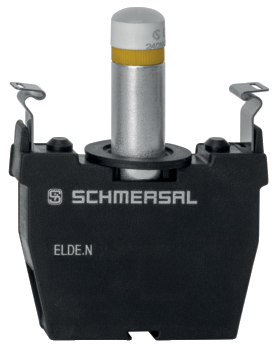

Product picture (catalogue individual photo)
ID: keldlf07
| 481.6 kB | .jpg | 352.425 x 441.678 mm - 999 x 1252 px - 72 dpi
| 67.2 kB | .png | 74.083 x 92.781 mm - 210 x 263 px - 72 dpi
| 463.4 kB | .jpg | 352.425 x 441.678 mm - 999 x 1252 px - 72 dpi
| 59.4 kB | .png | 74.083 x 92.781 mm - 210 x 263 px - 72 dpi
| 59.4 kB | .png | 74.083 x 92.781 mm - 210 x 263 px - 72 dpi
| 38.2 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 4.4 MB | .png | 169.333 x 212.09 mm - 2000 x 2505 px - 300 dpi
| 42.5 kB | .jpg | 98.42500000000001 x 123.47200000000001 mm - 279 x 350 px - 72 dpi
Diagram
Monitoring the interlock to EN ISO 14119
Positive break NC contact
Actuated
Not actuated
Normally-open contact
Normally-closed contact
