EX-BNS 250-12Z-2187-3GD 10M
Item number:
103045525
EX-BNS 250-12Z-2187-3GD 10M
Item number:
103045525
| Product type description: EX-BNS 250-(1)Z(2)-(3)3G/D |
| (1) | |
| 11 | 1 NO contact/1 NC contact |
| 12 | 1 NO contact/2 NC contacts |
| (2) | |
| without | without LED switching conditions display |
| G | with LED switching conditions display |
| (3) | |
| 2187 | Individual contact outlet (without LED switching conditions display LED) |
Not all component variants, which are possible according to this order code are available and/or technically feasible.
- Explosion protection for ATEX Zones 2 and 22
- Thermoplastic enclosure
- Insensitive to transverse misalignment
- no mechanical wear
- 64 mm x 29.5 mm x 15.5 mm (incl. protective enclosure)
Ordering data
| Product type description |
EX-BNS 250-12Z-2187-3GD 10M |
| Article number (order number) |
103045525 |
| EAN (European Article Number) |
4030661565132 |
| eCl@ss number, version 12.0 |
27-27-44-01 |
| eCl@ss number, version 11.0 |
27-27-24-02 |
| eCl@ss number, version 9.0 |
27-27-24-02 |
| ETIM number, version 7.0 |
EC002544 |
| ETIM number, version 6.0 |
EC002544 |
Explosion protection
| Explosion protection: regulations |
EN IEC 60079-0 EN IEC 60079-15 EN 60079-31 |
| Explosion protection zones |
2 22 |
| Explosion protection category |
3G 3D |
| Explosion protection designation |
D II 3G Ex nC IIC T6 Gc X D II 3D Ex tc IIIC T80°C Dc X |
Manufacturer declaration |
ATEX Zone 2 and 22 |
General data
| Housing construction form |
Block |
| Installation conditions (mechanical) |
not flush |
| Housing material |
Glass-fibre, reinforced thermoplastic |
| Gross weight |
465 g |
General data - Features
| Coding |
Yes |
| Prerequisite evaluation unit |
Yes |
| Number of normally closed (NC) |
2 |
| Number of normally open (NO) |
1 |
| Number of cable wires |
6 |
| Safety classification |
| Standards |
EN ISO 13849-1 |
| Mission time |
20 Year(s) |
Safety classification - Safety outputs
| B10D- Value Normally-closed contact/Normally open contact (NC/NO) |
25,000,000 Operations |
Mechanical data
| Actuating element |
Magnet |
| Impact energy, maximum |
7 J |
| Direction of motion |
Head-on to the active surface |
Mechanical data - Switching distances according EN IEC 60947-5-3
| Assured switching distance "ON" Sao |
4 mm |
| Assured switching distance "OFF" Sar |
14 mm |
Mechanical data - Connection technique
| Termination |
Cable |
| Wire cross-section |
0.25 mm2 |
| Wire cross-section |
23 AWG |
| Material of the Cable mantle |
PVC |
Mechanical data - Dimensions
| Length of sensor |
13 mm |
| Width of sensor |
33 mm |
| Height of sensor |
25 mm |
Ambient conditions
| Degree of protection |
IP67 |
| Ambient temperature |
-25 ... +70 °C |
| Storage and transport temperature |
-25 ... +70 °C |
| Resistance to vibrations |
10 … 55 Hz, amplitude 1 mm |
| Restistance to shock |
30 g / 11 ms |
Electrical data
| Switching voltage, maximum |
24 VDC |
| Switching current, maximum |
0.1 A |
| Switching capacity, maximum |
1 W |
| Switching element |
1 NO contact, 2 NC contacts |
| Switching frequency, maximum |
5 Hz |
Electrical data - Digital Output
| Design of control elements |
Miscellaneous, Reed contacts |
Scope of delivery
| Scope of delivery |
Actuator must be ordered separately. |
Accessory
| Recommendation (actuator) |
EX-BPS 250-3G/D |
| Recommended safety switchgear |
SRB-E-301ST SRB-E-201LC |
Note
| Note (General) |
Contact symbols shown for the closed condition of the guard device. The contact configuration for versions with or without LED is identical. |
Language filter
Datasheet
Operating instructions and Declaration of conformity
Brochure
SISTEMA-VDMA library
Download the latest version of Adobe Reader

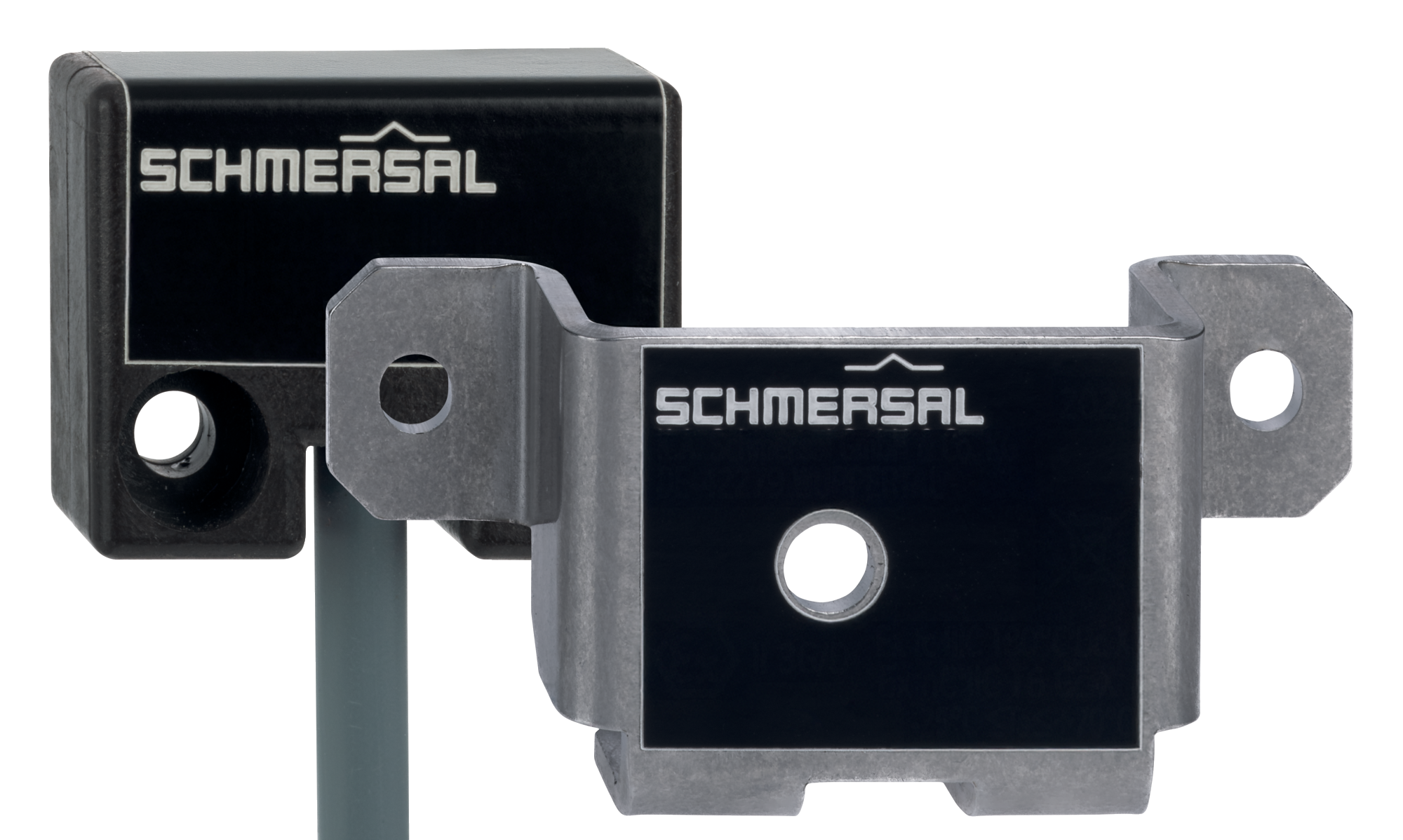

Product picture (catalogue individual photo)
Dimensional drawing basic component
Characteristic curve
Actuator
Accessories
101131223 SPACER BNS 250 SPACER
- to mount the magnetic safety sensor and actuator on ferromagnetic material
- Suitable for food processing industry
Mouting accessories
| UK Declaration of Conformity |  |
| Company: | K.A. Schmersal GmbH & Co. KG Möddinghofe 30 42279 Wuppertal Germany Internet: www.schmersal.com |
| Declaration: | We hereby, under sole responsibility, certify that the hereafter described components both in their basic design and construction conform to the relevant statutory requirements, regulations and designated standards of the United Kingdom. |
| Name of the component: | EX-BNS 250 | EX-BPS 250 |
| Type: | See ordering code |
| Marking: | D II 3G Ex nC IIC T6 Gc D II 3D Ex tc IIIC T80°C Dc | D II 3G Ex h IIC T6 Gc D II 3D Ex h IIIC T80°C Dc |
| Description of the component: | Coded safety-sensor with magnetic operating principle in combination with the SRB(-E) / PROTECT-SELECT / PSC1 safety-monitoring modules from Schmersal or an equivalent safety-oriented control system fulfilling the requirements of the EN 60947-5-3. |
| Relevant legislation: | Supply of Machinery (Safety) Regulations | 2008 |
| Equipment and Protective Systems intended for use in Potentially Explosive Atmospheres Regulations | 2016 | |
| The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations | 2012 |
| Designated standards: | EN 60947-5-3:2013 EN IEC 60079-0:2018 EN IEC 60079-15:2019 EN 60079-31:2014 EN ISO 80079-36:2016 EN ISO 80079-37:2016 |
| Conformity with SI 2016/1107 (Equipment and Protective Systems intended for use in Potentially Explosive Atmospheres Regulations) is declared by the manufacturer without involving a conformity assessment center. |
| UK-Importer / Person authorised for the compilation of the technical documentation: | Schmersal UK Ltd. Paul Kenney Unit 1, Sparrowhawk Close Enigma Business Park Malvern, Worcestershire, WR14 1GL |
| Place and date of issue: | Wuppertal, November 10, 2022 |
 |
| Authorised signature Philip Schmersal Managing Director |
| EU Declaration of Conformity | |
| Original | K.A. Schmersal GmbH & Co. KG Möddinghofe 30 42279 Wuppertal Germany Internet: www.schmersal.com |
| Declaration: | We hereby certify that the hereafter described components both in their basic design and construction conform to the applicable European Directives. |
| Name of the component: | EX-BNS 250 | EX-BPS 250 |
| Type: | See ordering code |
| Marking: | D II 3G Ex nC IIC T6 Gc D II 3D Ex tc IIIC T80°C Dc | D II 3G Ex h IIC T6 Gc D II 3D Ex h IIIC T80°C Dc |
| Description of the component: | Coded safety-sensor with magnetic operating principle in combination with the SRB(-E) / PROTECT-SELECT / PSC1 safety-monitoring modules from Schmersal or an equivalent safety-oriented control system fulfilling the requirements of the EN 60947-5-3. |
| Relevant Directives: | Machinery Directive | 2006/42/EC |
| Explosion Protection Directive (ATEX) | 2014/34/EU | |
| RoHS-Directive | 2011/65/EU |
| Applied standards: | EN 60947-5-3:2013 EN IEC 60079-0:2018 EN IEC 60079-15:2019 EN 60079-31:2014 EN ISO 80079-36:2016 EN ISO 80079-37:2016 |
| Person authorised for the compilation of the technical documentation: | Oliver Wacker Möddinghofe 30 42279 Wuppertal |
| Conformity with the explosion protection directive 2014/34/EU (ATEX) is declared by the manufacturer without involving a test center. |
| Place and date of issue: | Wuppertal, May 10, 2022 |
|
| Authorised signature Philip Schmersal Managing Director |
