EX-T. 441-11Y-966-1276-2
Item number:
101209307
EX-T. 441-11Y-966-1276-2
Item number:
101209307
Downloads
TraceParts
CAD Data
ePLAN
Data
CADENAS
CAD Data
SISTEMA
Data
| Product type description: EX-(1) 441-11Y-(2)-(3)-1276-2 |
| (1) | |
| M. | Snap action |
| T. | Slow action (not for AF/S) |
| (2) | |
| UE | Slow action with overlapping contacts |
| (3) | |
| without | Lever selection, refer to catalogue |
Not all component variants, which are possible according to this order code are available and/or technically feasible.
- 2 cable entries M20
- Metal enclosure
- 106 mm x 99 mm x 63 mm (basic component)
- Suitable for heavy duty
- Ex-Zone 21 and 22
Ordering data
| Product type description |
EX-T. 441-11Y-966-1276-2 |
| Article number (order number) |
101209307 |
| EAN (European Article Number) |
4030661382494 |
| eCl@ss number, version 12.0 |
27-27-06-01 |
| eCl@ss number, version 11.0 |
27-27-06-01 |
| eCl@ss number, version 9.0 |
27-27-06-01 |
| ETIM number, version 7.0 |
EC000030 |
| ETIM number, version 6.0 |
EC000030 |
Approvals - Standards
|
ATEX IECEx INMETRO NEPSI CCC-EX |
Explosion protection
| Explosion protection: regulations |
EN IEC 60079-0 EN 60079-31 |
| Explosion protection zones |
21 |
| Explosion protection category |
2D |
| Explosion protection designation |
D II 2D Ex tb IIIC T90°C Db |
General data
| Standards |
EN IEC 60947-5-1 |
| Working principle |
mechanical |
| Housing material |
Grey cast iron, galvanised |
| Housing coating material |
painted |
| Gross weight |
2,050 g |
General data - Features
| Number of normally closed (NC) |
1 |
| Number of normally open (NO) |
1 |
Mechanical data
| Mechanical life, minimum |
10,000,000 Operations |
| Contact opening |
2 x 6 mm |
| Actuation direction |
each time 60° right-hand side and left-hand side rotation |
Mechanical data - Connection technique
| Termination |
Screw terminals M20 x 1.5 |
| Cable section, minimum |
1.5 mm² |
| Cable section, maximum |
2.5 mm² |
Mechanical data - Dimensions
| Length of sensor |
63 mm |
| Width of sensor |
106 mm |
| Height of sensor |
99 mm |
| Diameter of Castor |
32 mm |
| Length of the lever |
32 mm |
| Width of the lever |
32 mm |
| Height of the lever |
159 mm |
Ambient conditions
| Degree of protection |
IP65 IP66 IP67 |
| Ambient temperature |
-20 ... +60 °C |
Ambient conditions - Insulation values
| Rated insulation voltage Ui |
400 V |
| Rated impulse withstand voltage Uimp |
6 kV |
Electrical data
| Thermal test current |
16 A |
| Utilisation category AC-15 |
400 VAC |
| Utilisation category AC-15 |
4 A |
| Switching element |
NO contact, NC contact |
| Switching principle |
Slow action |
| Maximum switching frequency |
3,000 /h |
| Material of the contacts, electrical |
Silver |
Language filter
Datasheet
Operating instructions and Declaration of conformity
IECEx certification
NEPSI Certificate
CCC certification
INMETRO certification
Download the latest version of Adobe Reader

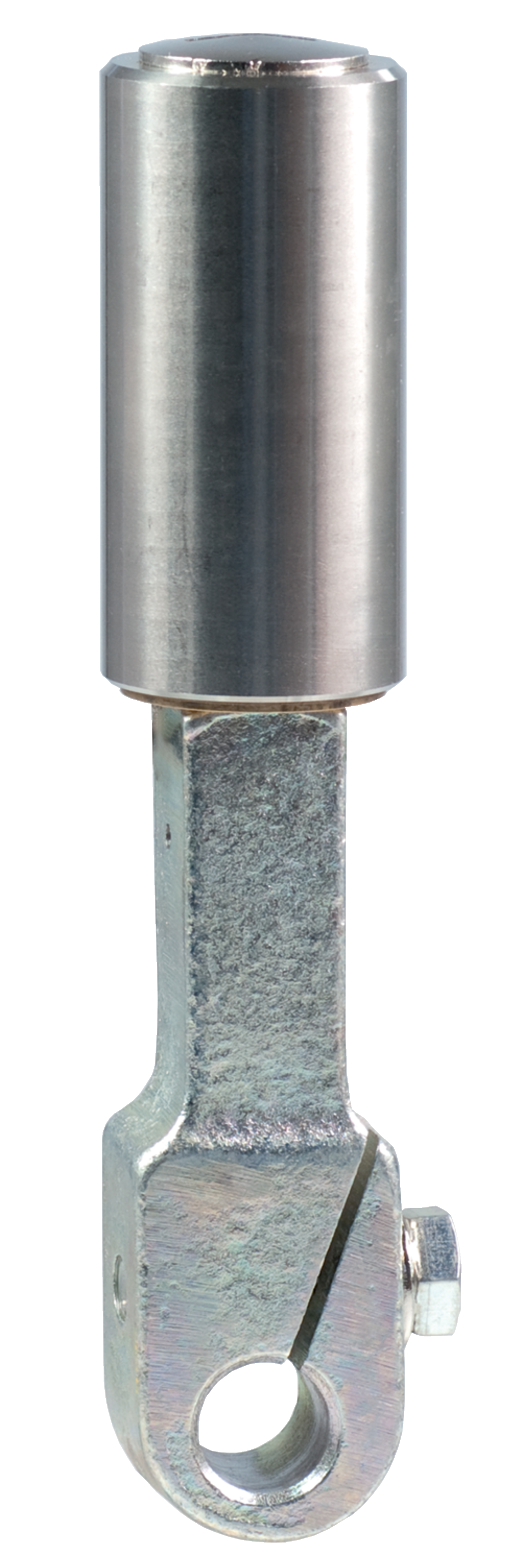

Product picture (catalogue individual photo)

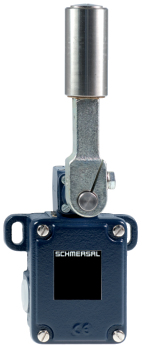

Product picture (catalogue individual photo)
Dimensional drawing basic component
Contact closed
Contact open
Setting range
Latching point
Positive opening path/angle
EU Conformity Declaration
| EU Declaration of Conformity |  |
| Original | K.A. Schmersal GmbH & Co. KG Möddinghofe 30 42279 Wuppertal Germany Internet: www.schmersal.com |
| Declaration: | We hereby certify that the hereafter described components both in their basic design and construction conform to the applicable European Directives. |
| Name of the component: | EX-T/M 441 |
| Type: | See ordering code |
| Marking: | D II 2D Ex tb IIIC T90°C Db |
| Description of the component: | Belt alignment switch / Slack-wire switch / Position switch |
| Relevant Directives: | Explosion Protection Directive (ATEX) | 2014/34/EU |
| RoHS-Directive | 2011/65/EU |
| Applied standards: | EN 60947-5-1:2017 + AC:2020 EN IEC 60079-0:2018 EN 60079-31:2014 |
| Notified body, which approved the full quality assurance system, referred to Appendix IV, 2014/34/EU: | TÜV Rheinland Industrie Service GmbH Am Grauen Stein, 51105 Köln ID n°: 0035 |
| Notified body for Type Examination: | DEKRA Testing and Certification GmbH Dinnendahlstraße 9 44809 Bochum ID n°: 0158 |
| EU-Type Examination Certificate: | BVS 08 ATEX E 157 |
| Person authorised for the compilation of the technical documentation: | Oliver Wacker Möddinghofe 30 42279 Wuppertal |
| Place and date of issue: | Wuppertal, November 24, 2022 |
 |
| Authorised signature Philip Schmersal Managing Director |
Schmersal India Pvt. Ltd., Plot No - G-7/1, Ranjangaon MIDC, Tal. - Shirur, Dist.- Pune 412 220
The details and data referred to have been carefully checked. Images may diverge from original. Further technical data can be found in the manual. Technical amendments and errors possible.
