SG1
Item number:
101207761
Archive
SG1
Item number:
101207761
Downloads
TraceParts
CAD Data
ePLAN
Data
CADENAS
CAD Data
SISTEMA
Data
Ordering data
| Note (Delivery capacity) |
Not available! |
| Product type description |
SG1 |
| Article number (order number) |
101207761 |
| eCl@ss number, version 12.0 |
27-27-27-92 |
| eCl@ss number, version 11.0 |
27-27-27-92 |
| eCl@ss number, version 9.0 |
27-27-27-92 |
| ETIM number, version 7.0 |
EC002549 |
| ETIM number, version 6.0 |
EC002549 |
General data
| Housing material |
Metal film |
| Housing coating material |
hot-dip galvanised |
| Gross weight |
10,000 g |
Mechanical data - Dimensions
| Width |
82 mm |
| Height |
1,114 mm |
| Depth |
120 mm |

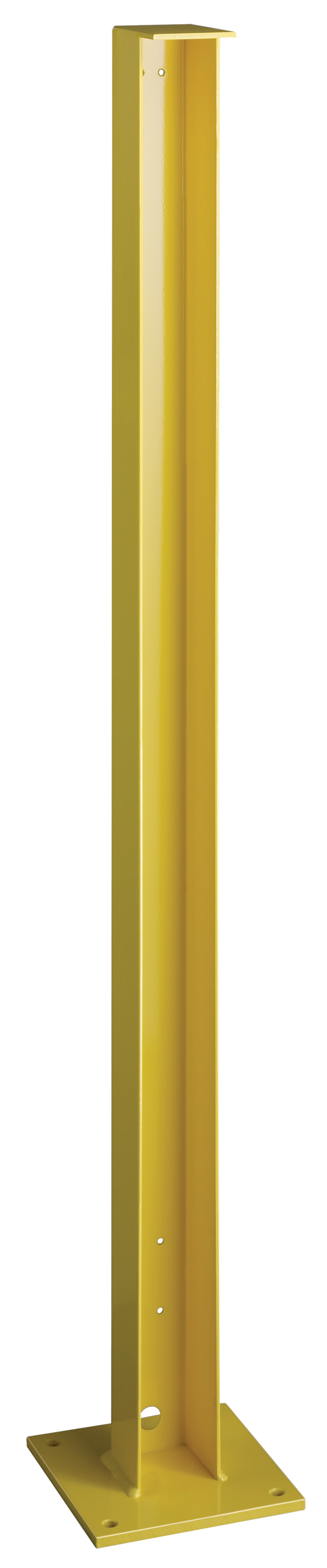

Product picture (catalogue individual photo)
Schmersal India Pvt. Ltd., Plot No - G-7/1, Ranjangaon MIDC, Tal. - Shirur, Dist.- Pune 412 220
The details and data referred to have been carefully checked. Images may diverge from original. Further technical data can be found in the manual. Technical amendments and errors possible.
