T2FH 232-11/11
T2FH 232-11/11
| Product type description: (1)2F(2) 232-(3)-(4) |
| (1) | |
| T | Slow action |
| Z | Snap action |
| (2) | |
| without | without protective shield |
| H | with protective shield |
| (3) | |
| 11/11 | 1 NO contact/1 NC contact |
| 02/02 | 2 NC contact |
| 20/20 | 2 NO contacts |
| 22/22 | 2 NO contacts/2 NC contact |
| 04/04 | 4 NC contact |
| 40/40 | 4 NO contacts |
| (4) | |
| HD | phase actuation with pressure point |
- 2 contacts per pedal
- Protective shield with wide opening
- double-pedal type
- Low operating height of pedal
- High level of stability
- Metal enclosure
- 2 cable entries M 25 x 1.5
Ordering data
| Product type description |
T2FH 232-11/11 |
| Article number (order number) |
151181584 |
| eCl@ss number, version 12.0 |
27-37-12-18 |
| eCl@ss number, version 11.0 |
27-37-12-18 |
| eCl@ss number, version 9.0 |
27-37-12-18 |
| ETIM number, version 7.0 |
EC001258 |
| ETIM number, version 6.0 |
EC001258 |
Approvals - Standards
| Certificates |
cULus CCC |
General data
| Standards |
BG-GS-ET-15 DIN VDE 0660-200 EN IEC 60947-5-1 |
| Housing material |
Aluminium |
| Housing coating material |
powder-coated |
| Material of the housing cover |
Aluminium |
| Material of the pedal |
Glass-fibre, reinforced thermoplastic |
| Material of the protective shield |
Aluminium |
| Colour of the housing |
RAL 9006 (White aluminum) |
| Gross weight |
3,500 g |
General data - Features
| Protective shield |
Yes |
| Probing possible |
Yes |
| Number of pedals, NC |
1 |
| Number of pedals, NO |
1 |
Mechanical data
| Mechanical lifetime, minimum |
1,000,000 Operations |
| Actuating force, minimum |
260 N |
| Actuating force, maximum |
380 N |
Mechanical data - Connection technique
| Type of electrical connection |
Screw terminals |
| Cable entry |
2 x M25 x 1.5 |
| Cable section, maximum |
1 x 2.5 mm² |
| Note |
All indications including the conductor ferrules. |
Mechanical data - Dimensions
| Width |
295 mm |
| Height |
189 mm |
| Depth |
274 mm |
Ambient conditions
| Degree of protection |
IP65 |
| Ambient temperature |
-25 ... +70 °C |
Ambient conditions - Insulation values
| Rated insulation voltage Ui |
500 V |
| Rated impulse withstand voltage Uimp |
6 kV |
Electrical data
| Thermal test current |
10 A |
| Required rated short-circuit current |
1,000 A |
| Utilisation category AC-15 |
230 VAC |
| Utilisation category AC-15 |
4 A |
| Utilisation category DC-13 |
24 VDC |
| Utilisation category DC-13 |
1 A |
| Switching principle |
Slow action |
| Switching element |
NC contact, NO contact |
Language filter
Datasheet
Operating instructions and Declaration of conformity
UL Certificate
CCC certification
Download the latest version of Adobe Reader

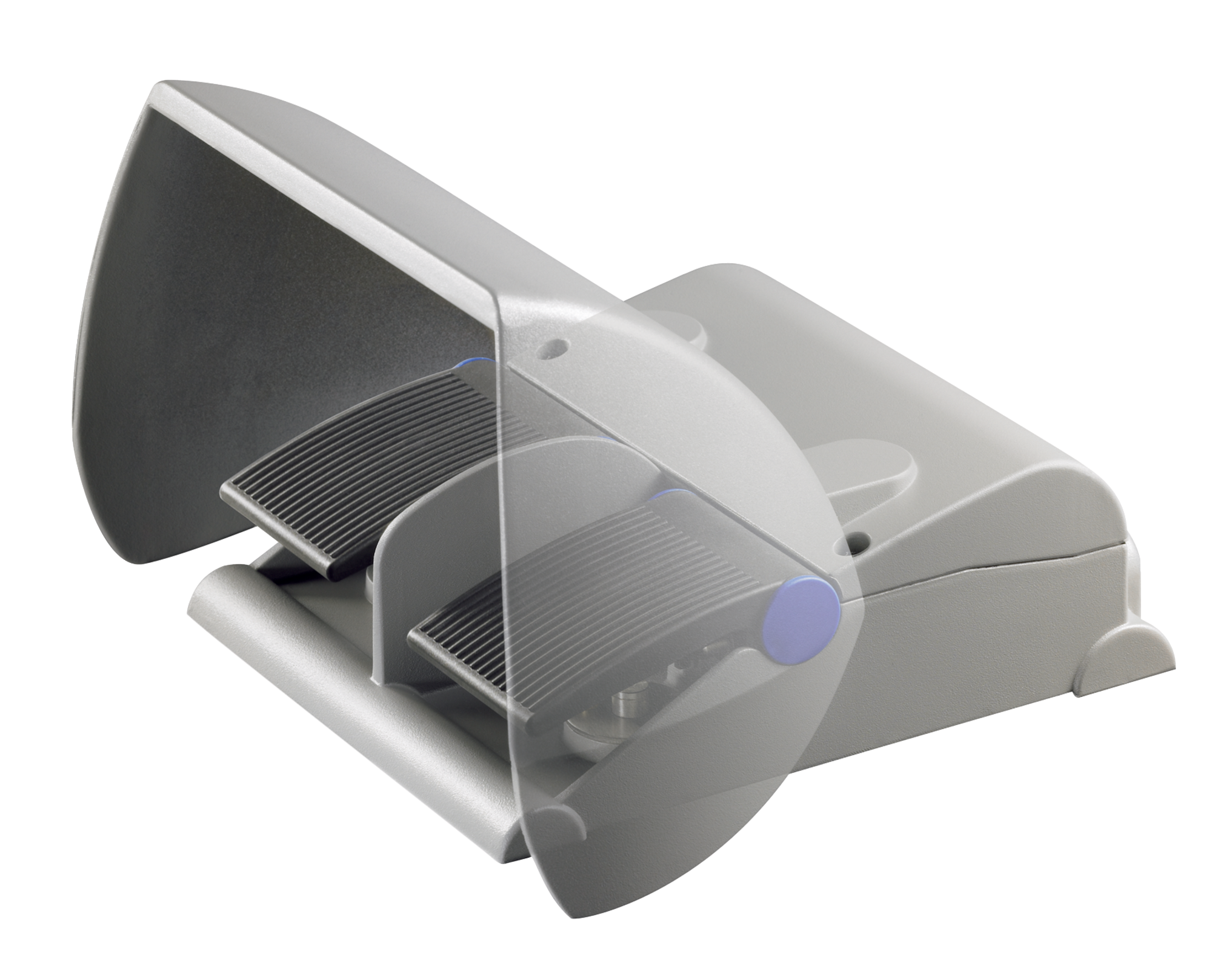

Product picture (catalogue individual photo)
ID: ktfh2f01
| 299.7 kB | .jpg | 352.778 x 285.397 mm - 1000 x 809 px - 72 dpi
| 28.4 kB | .png | 74.083 x 59.972 mm - 210 x 170 px - 72 dpi
| 35.1 kB | .jpg | 123.472 x 99.836 mm - 350 x 283 px - 72 dpi
| 37.0 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 3.1 MB | .png | 169.333 x 136.906 mm - 2000 x 1617 px - 300 dpi
Dimensional drawing basic component
Monitoring the interlock to EN ISO 14119
Positive break NC contact
Actuated
Not actuated
Normally-open contact
Normally-closed contact
| EU Declaration of Conformity |  |
| Original | SCHMERSAL Industrial Switchgear (Shanghai) Co., Ltd. Cao Ying Road 3336 201712 Shanghai / Qingpu P.R. CHINA Internet: www.schmersal.com.cn |
| Declaration: | We hereby certify that the hereafter described components both in their basic design and construction conform to the applicable European Directives. |
| Name of the component: | Z/TF 232 |
| Type: | See ordering code |
| Description of the component: | Foot switch |
| Relevant Directives: | Low Voltage Directive | 2014/35/EU |
| RoHS-Directive | 2011/65/EU |
| Applied standards: | EN 60947-5-1:2017 |
| Person authorised for the compilation of the technical documentation: | Oliver Wacker Möddinghofe 30 42279 Wuppertal |
| Place and date of issue: | Shanghai, August 17, 2021 |
 |
| Authorised signature Michele Seassaro Managing Director |
| UK Declaration of Conformity | |
| Company: | SCHMERSAL Industrial Switchgear (Shanghai) Co., Ltd. Cao Ying Road 3336 201712 Shanghai / Qingpu P.R. CHINA www.schmersal.com.cn |
| Declaration: | We hereby, under sole responsibility, certify that the hereafter described components both in their basic design and construction conform to the relevant statutory requirements, regulations and designated standards of the United Kingdom. |
| Name of the component: | Z/TF 232 |
| Type: | See ordering code |
| Description of the component: | Foot switch |
| Relevant legislation: | Electrical Equipment (Safety) Regulations | 2016 |
| The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations | 2012 |
| Designated standards: | EN 60947-5-1:2017 |
| UK-Importer / Person authorised for the compilation of the technical documentation: | Schmersal UK Ltd. Paul Kenney Unit 1, Sparrowhawk Close Enigma Business Park Malvern, Worcestershire, WR14 1GL |
| Place and date of issue: | Shanghai, October 6, 2021 |
|
| Authorised signature Michele Seassaro Managing Director |
