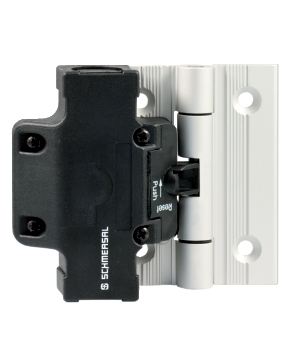

TESZR1102
TESZR1102
- 2 cable entries M 20 x 1.5
- Simple fitting, especially on 40 mm profiles
- Thermoplastic enclosure
- Double-insulated
- Good resistance to oil and petroleum spirit
- 111,5 mm x 92 mm x 36 mm
Ordering data
| Note (Delivery capacity) |
Not available! |
| Product type description |
TESZR1102 |
| Article number (order number) |
101172004 |
| EAN (European Article Number) |
4030661605449 |
| eCl@ss number, version 12.0 |
27-27-06-09 |
| eCl@ss number, version 11.0 |
27-27-06-09 |
| eCl@ss number, version 9.0 |
27-27-06-09 |
| ETIM number, version 7.0 |
EC002591 |
| ETIM number, version 6.0 |
EC002591 |
Approvals - Standards
|
cULus CCC |
General data
| Standards |
BG-GS-ET-15 EN IEC 60947-5-1 |
| Housing material |
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing |
| Material of the hinge |
Aluminium |
| Gross weight |
420 g |
General data - Features
| mounting hinge |
Yes |
| Additional hinge |
Yes |
| Number of auxiliary contacts |
1 |
| Number of safety contacts |
2 |
| Safety classification |
| Standards |
EN ISO 13849-1 |
| Mission time |
20 Year(s) |
Safety classification - Safety outputs
| B10D Normally-closed contact (NC) |
2,000,000 Operations |
| B10D Normally open contact (NO) |
1,000,000 Operations |
Mechanical data
| Mechanical life, minimum |
1,000,000 Operations |
| Positive break angle |
14 ° |
| Positive break force, minimum |
1 N |
Mechanical data - Connection technique
| Termination |
Screw terminals M20 x 1.5 |
| Cable section, minimum |
0.5 mm² |
| Cable section, maximum |
1 mm² |
| Note |
All indications including the conductor ferrules. |
Mechanical data - Dimensions
| Length x Width x Height |
Suitable for mounting to profile systems: 40 mm |
| Length of sensor |
36 mm |
| Width of sensor |
111.5 mm |
| Height of sensor |
92 mm |
Ambient conditions
| Degree of protection |
IP65 |
| Ambient temperature |
-25 ... +65 °C |
Ambient conditions - Insulation values
| Rated insulation voltage Ui |
250 VAC |
| Rated impulse withstand voltage Uimp |
2.5 kV |
Electrical data
| Thermal test current |
2.5 A |
| Utilisation category AC-15 |
230 VAC |
| Utilisation category AC-15 |
2 A |
| Utilisation category DC-13 |
24 VDC |
| Utilisation category DC-13 |
1 A |
| Switching element |
NO contact, NC contact |
| Switching principle |
Slow action |
| Maximum switching frequency |
120 /h |
| Material of the contacts, electrical |
Silver |
Note
| Note (General) |
The opening angle has been set to 4° in factory. The additional hinge including mounting accessories is also available separately, part number TES/S |
Language filter
Datasheet
Operating instructions and Declaration of conformity
UL Certificate
CCC certification
Datasheet (provisional PDF)
SISTEMA-VDMA library
Download the latest version of Adobe Reader
Product picture (catalogue individual photo)
Dimensional drawing basic component
Switch travel diagram
Contact closed
Contact open
Setting range
Latching point
Positive opening path/angle
Monitoring the interlock to EN ISO 14119
Positive break NC contact
Actuated
Not actuated
Normally-open contact
Normally-closed contact
