TFI-010
Item number:
101166329
TFI-010
Item number:
101166329
- Pre-positioning
- The actuator is independent from the centring device.
- Smooth insertion or retraction of the actuator
Ordering data
| Product type description |
TFI-010 |
| Article number (order number) |
101166329 |
| EAN (European Article Number) |
4030661293769 |
| eCl@ss number, version 12.0 |
27-27-26-92 |
| eCl@ss number, version 11.0 |
27-27-26-92 |
| eCl@ss number, version 9.0 |
27-27-26-92 |
| ETIM number, version 7.0 |
EC002594 |
| ETIM number, version 6.0 |
EC002594 |
General data
| Gross weight |
198 g |
General data - Features
| Mounting inside |
Yes |
Mechanical data - Dimensions
| Width |
113 mm |
| Height |
50 mm |
| Depth |
25 mm |

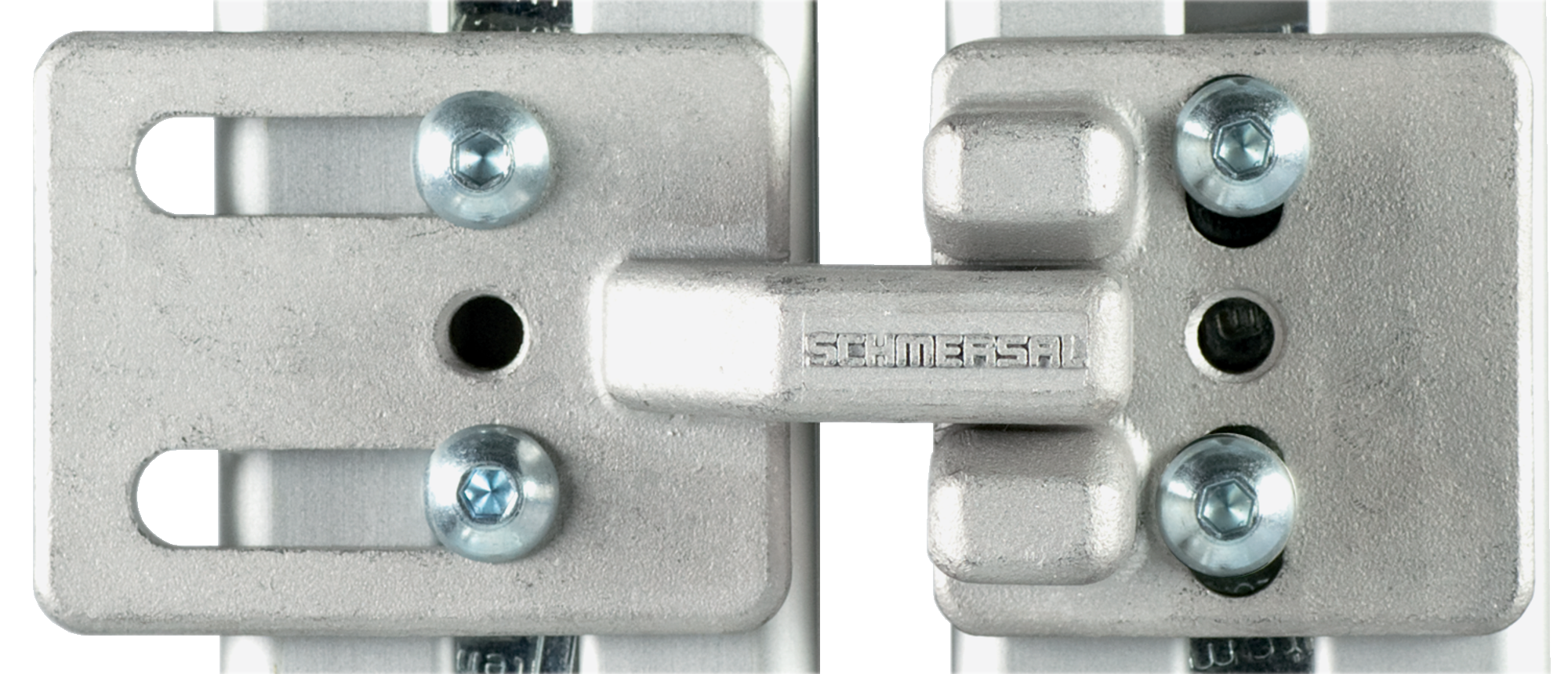

Product picture (catalogue individual photo)

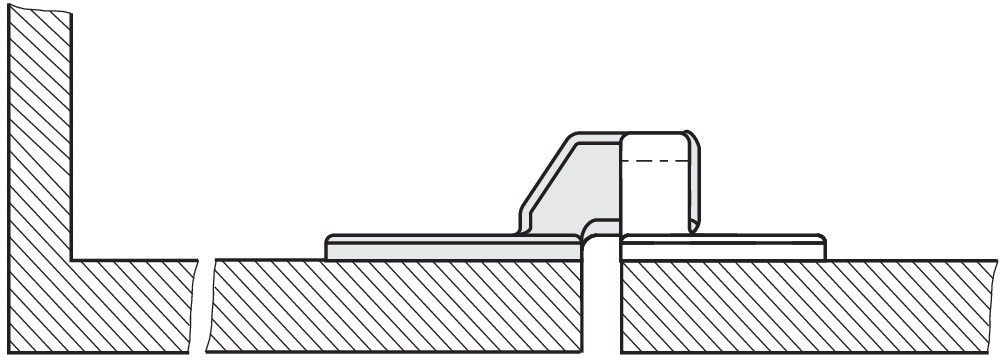

Dimensional drawing basic component

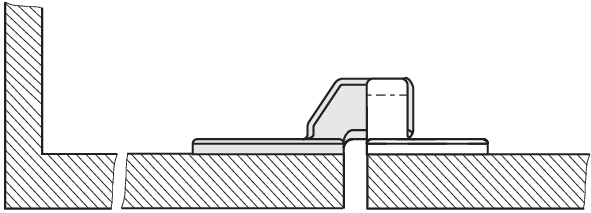

Dimensional drawing basic component
Schmersal India Pvt. Ltd., Plot No - G-7/1, Ranjangaon MIDC, Tal. - Shirur, Dist.- Pune 412 220
The details and data referred to have been carefully checked. Images may diverge from original. Further technical data can be found in the manual. Technical amendments and errors possible.
