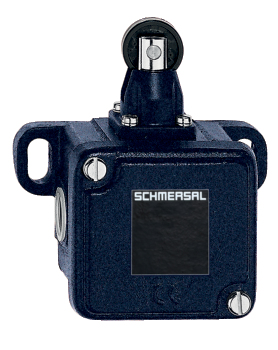

TR 422-01Y-T
TR 422-01Y-T
Downloads
| Product type description: T(1) 422-(2)Y-(3) |
| (1) | |
| S | Plunger S |
| 2S | Telescopic plunger 2S |
| R | Roller plunger R |
| K | Offset roller lever K |
| J | Offset roller lever J |
| 2C | Fork lever 2C |
| L | Roller lever L |
| D | Roller lever D |
| (2) | |
| 01 | 1 NC contact |
| 10 | 1 NO contact |
| (3) | |
| T | temperature-resistant and tropical version with ceramic insulation for -40 °C … +200 °C |
| 1276-2 | Gold-plated contacts |
| 2186 | Protection class IP66 |
| 1090 | Swivel lever attachment made of seawater-resistant brass Rated voltage 500 VAC |
- Metal enclosure
- 1 Contact
- 106 mm x 71 mm x 63 mm (basic component)
- Protection class IP65
- Actuator can be repositioned by 90°
Ordering data
| Product type description |
TR 422-01Y-T |
| Article number (order number) |
101058684 |
| EAN (European Article Number) |
4030661033280 |
| eCl@ss number, version 12.0 |
27-27-06-01 |
| eCl@ss number, version 11.0 |
27-27-06-01 |
| eCl@ss number, version 9.0 |
27-27-06-01 |
| ETIM number, version 7.0 |
EC000030 |
| ETIM number, version 6.0 |
EC000030 |
Approvals - Standards
| Certificates |
INMETRO CCC |
General data
| Standards |
EN IEC 60947-5-1 |
| Working principle |
mechanical |
| Slide form |
Castor |
| Housing material |
Grey cast iron, galvanised |
| Housing coating material |
painted |
| Gross weight |
1,121 g |
General data - Features
| Number of normally closed (NC) |
1 |
| Safety classification |
| B10D Normally-closed contact (NC) |
2,000,000 Operations |
Mechanical data
| Actuating element |
Roller plunger |
| Roller material |
Plastic |
| Mechanical lifetime, minimum |
10,000,000 Operations |
| Actuating angle, from left of switch axis |
30 ° |
| Actuating angle, from right of switch axis |
30 ° |
| Contact opening |
2 x 6 mm |
| Actuating speed, minimum |
1 mm/min |
| Actuating speed, maximum |
0.5 m/s |
| Note (Actuating speed) |
Actuating speed with vertical actuating angle to switch axis |
Mechanical data - Connection technique
| Termination |
Screw terminals M20 x 1.5 |
| Cable section, minimum |
1.5 mm² |
| Cable section, maximum |
2.5 mm² |
| Note |
All indications including the conductor ferrules. |
| Wire cross-section |
13 AWG |
Mechanical data - Dimensions
| Length of sensor |
63 mm |
| Width of sensor |
106 mm |
| Height of sensor |
117 mm |
| Width of Castor |
6.5 mm |
| Diameter of Castor |
25 mm |
Ambient conditions
| Degree of protection |
IP65 |
| Ambient temperature |
-40 ... +200 °C |
Ambient conditions - Insulation values
| Rated insulation voltage Ui |
400 V |
Electrical data
| Thermal test current |
16 A |
| Utilisation category AC-15 |
400 VAC |
| Utilisation category AC-15 |
4 A |
| Switching element |
Opener (NC) |
| Note (Switching element) |
with double break |
| Switching principle |
Slow action |
| Material of the contacts, electrical |
Silver |
Language filter
Datasheet
Operating instructions and Declaration of conformity
CCC certification
DNV-GL Certificate
Download the latest version of Adobe Reader

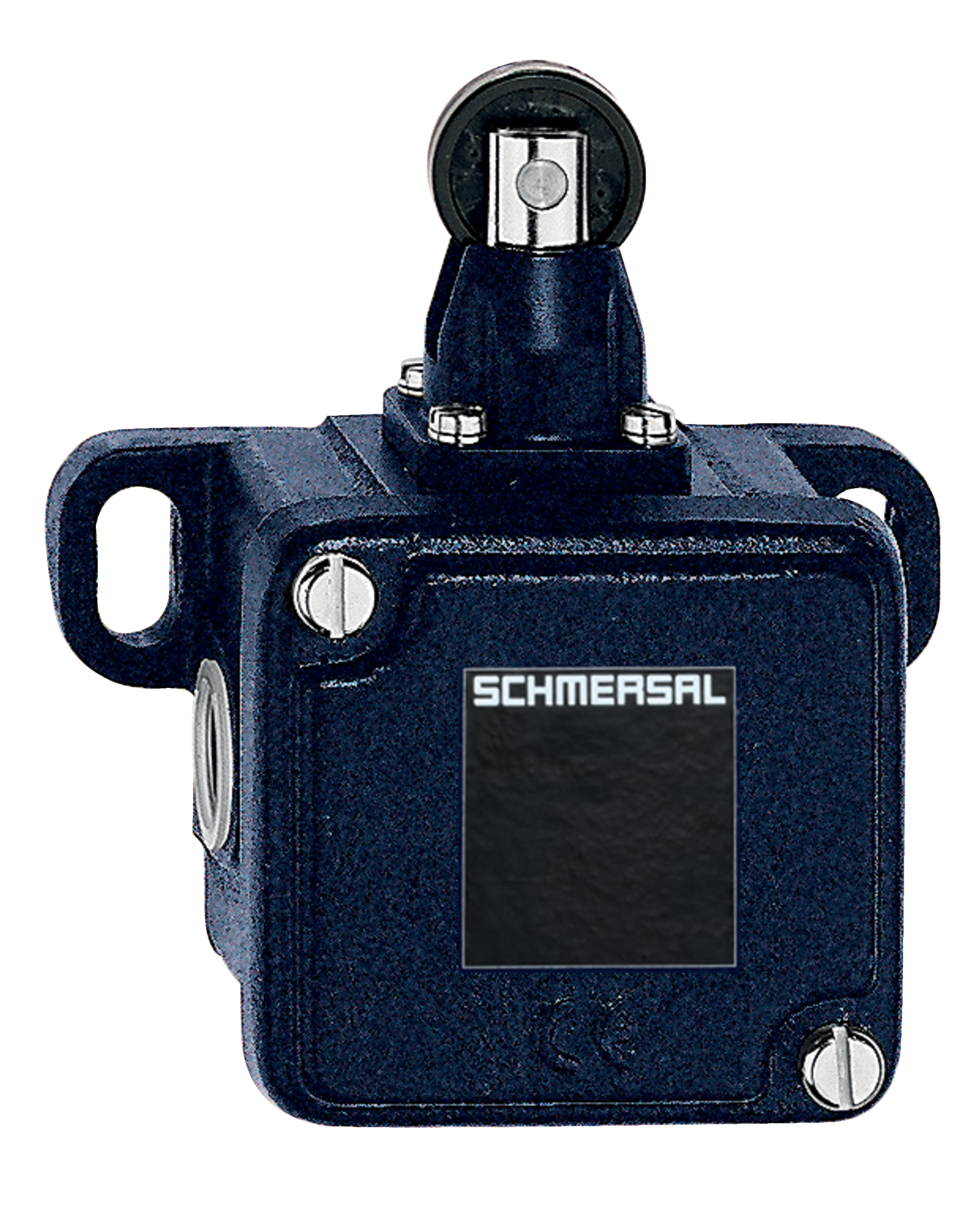

Product picture (catalogue individual photo)
ID: kt422f04
| 834.6 kB | .jpg | 352.778 x 443.79400000000004 mm - 1000 x 1258 px - 72 dpi
| 79.5 kB | .png | 74.083 x 93.13300000000001 mm - 210 x 264 px - 72 dpi
| 49.0 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 6.2 MB | .png | 166.55700000000002 x 209.529 mm - 2000 x 2516 px - 305 dpi
| 71.3 kB | .jpg | 98.072 x 123.47200000000001 mm - 278 x 350 px - 72 dpi
Dimensional drawing basic component
Dimensional drawing actuator
