TS 452-20Y
TS 452-20Y
Downloads
- 2 cable entries M 20 x 1.5
- Metal enclosure
- 118 mm x 127 mm x 64 mm ( basic component)
Ordering data
| Note (Delivery capacity) |
Not available! |
| Product type description |
TS 452-20Y |
| Article number (order number) |
101058399 |
| EAN (European Article Number) |
4030661253695 |
| eCl@ss number, version 12.0 |
27-27-06-01 |
| eCl@ss number, version 11.0 |
27-27-06-01 |
| eCl@ss number, version 9.0 |
27-27-06-01 |
| ETIM number, version 7.0 |
EC000030 |
| ETIM number, version 6.0 |
EC000030 |
Approvals - Standards
| Certificates |
DNV CCC |
General data
| Standards |
EN IEC 60947-5-1 |
| Working principle |
mechanical |
| Slide form |
Sphere |
| Housing material |
Grey cast iron, galvanised |
| Housing coating material |
painted |
| Gross weight |
1,627 g |
General data - Features
| Number of normally open (NO) |
2 |
Mechanical data
| Actuating element |
Plunger |
| Mechanical life, minimum |
10,000,000 Operations |
| Actuating angle |
20 ° |
| Contact opening |
2 x 6 mm |
| Actuating speed, minimum |
1 mm/min |
| Actuating speed, maximum |
1 m/s |
| Note (Actuating speed) |
Actuating speed with vertical actuating angle to switch axis |
Mechanical data - Connection technique
| Termination |
Screw terminals M20 x 1.5 |
| Cable section, minimum |
1.5 mm² |
| Cable section, maximum |
2.5 mm² |
| Note |
All indications including the conductor ferrules. |
| Wire cross-section |
13 AWG |
Mechanical data - Dimensions
| Length of sensor |
64 mm |
| Width of sensor |
118 mm |
| Height of sensor |
153 mm |
| Diameter of the Plunger |
10 mm |
Ambient conditions
| Degree of protection |
IP65 |
| Ambient temperature |
-30 ... +90 °C |
Ambient conditions - Insulation values
| Rated insulation voltage Ui |
400 V |
| Rated impulse withstand voltage Uimp |
6 kV |
Electrical data
| Thermal test current |
16 A |
| Utilisation category AC-15 |
400 VAC |
| Utilisation category AC-15 |
4 A |
| Switching element |
Normally open contact (NO) |
| Note (Switching element) |
with double break |
| Switching principle |
Slow action |
| Material of the contacts, electrical |
Silver |
Note
| Note (General) |
Actuation from the side of the plunger should be avoided, since this reduces the mechanical life of the position switch. |
Language filter
Datasheet
Operating instructions and Declaration of conformity
CCC certification
DNV-GL Certificate
Download the latest version of Adobe Reader

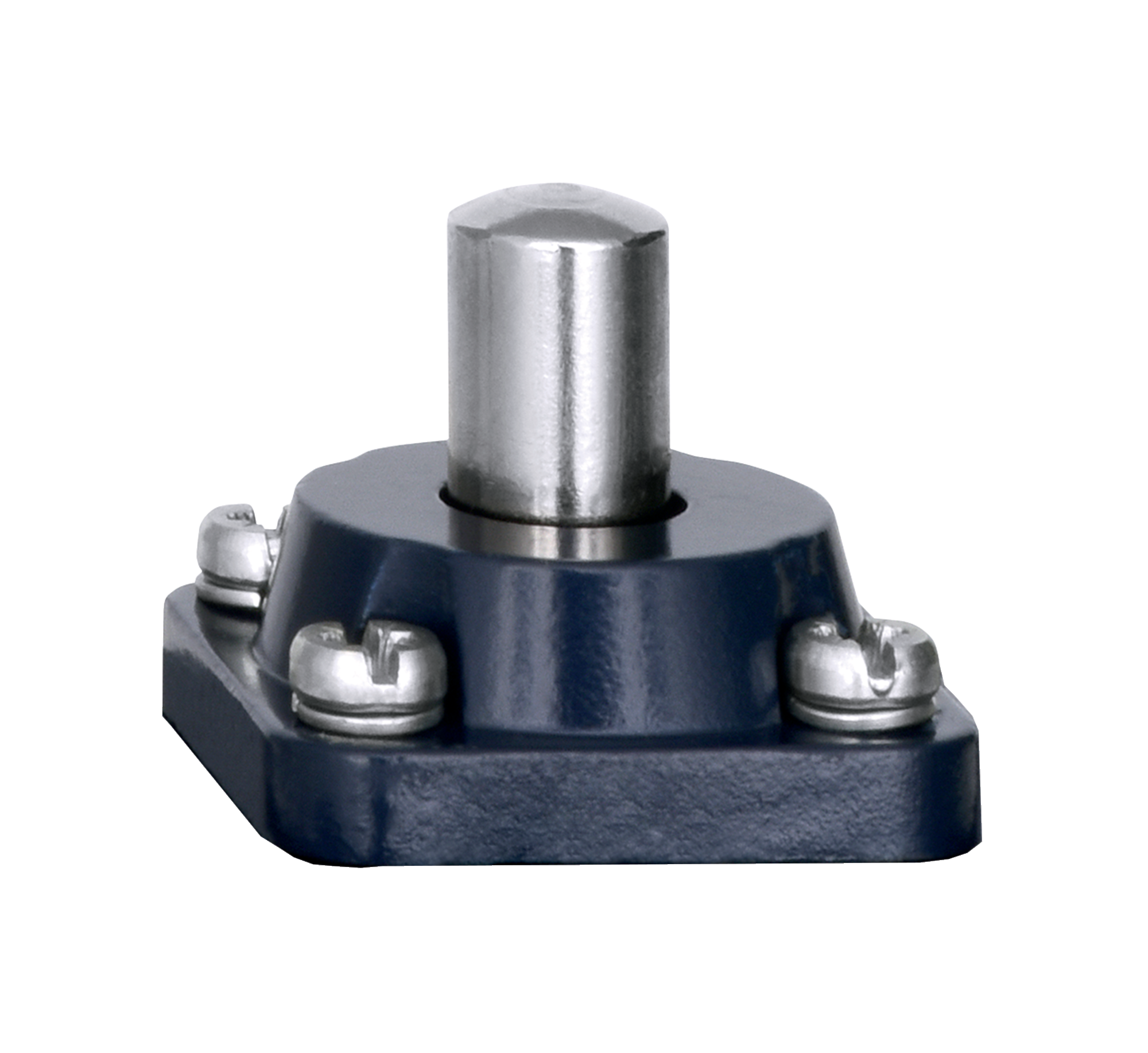

Product picture (catalogue individual photo)
