ACTUATOR AZM 170-B6
Item number:
131123391
ACTUATOR AZM 170-B6
Item number:
131123391
Downloads
TraceParts
CAD Data
ePLAN
Data
CADENAS
CAD Data
SISTEMA
Data
- Particularly suitable for hinged guards
- The direction of actuation can be selected by applicable insertion of the insert
Ordering data
| Product type description |
ACTUATOR AZM 170-B6 |
| Article number (order number) |
131123391 |
| EAN (European Article Number) |
8905236104398 |
| eCl@ss number, version 12.0 |
27-27-26-06 |
| eCl@ss number, version 11.0 |
27-27-26-06 |
| eCl@ss number, version 9.0 |
27-27-26-06 |
| ETIM number, version 7.0 |
EC001487 |
| ETIM number, version 6.0 |
EC001487 |
General data
| Material of the actuator |
Stainless steel |
| Gross weight |
22 g |
Mechanical data
| Actuating radius, minimum |
50 mm |
| Actuator |
flexible |
Note
| Note (General) |
The axis of the hinge must be 11 mm above and in a parallel plane to the top surface of the safety switch. Actuating radius adjustable, minimum 50 mm, using an hexagonal key wrench SW 2 mm (a and b) |
Language filter
Datasheet
Operating instructions and Declaration of conformity
Download the latest version of Adobe Reader

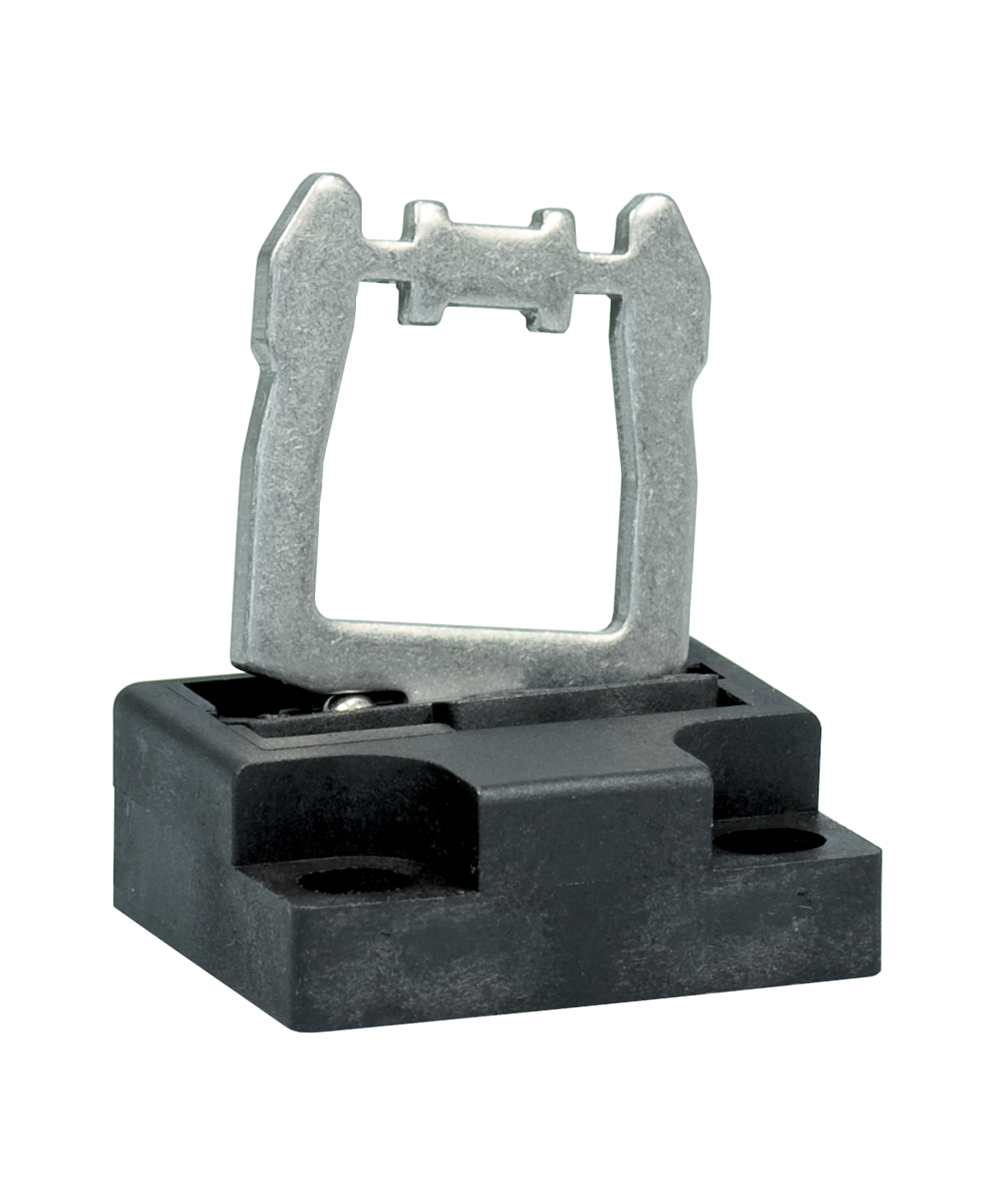

Product picture (catalogue individual photo)
