IFL 8-18-10/01YG
Item number:
101091875
Archive
IFL 8-18-10/01YG
Item number:
101091875
Downloads
TraceParts
CAD Data
ePLAN
Data
CADENAS
CAD Data
SISTEMA
Data
- 1 Cable entry PG9 x 1.5
- Metal enclosure
- AC 2-wire
- Double-insulated
- Wiring compartment
- Design M 18 x 1
Ordering data
| Note (Delivery capacity) |
Not available! |
| Product type description |
IFL 8-18-10/01YG |
| Article number (order number) |
101091875 |
| EAN (European Article Number) |
4030661018294 |
| eCl@ss number, version 12.0 |
27-27-40-01 |
| eCl@ss number, version 11.0 |
27-27-01-01 |
| eCl@ss number, version 9.0 |
27-27-01-01 |
| ETIM number, version 7.0 |
EC002714 |
| ETIM number, version 6.0 |
EC002714 |
Approvals - Standards
|
CCC |
General data
| Standards |
DIN VDE 0660-208 EN IEC 60947-5-2 |
| Housing construction form |
Cylinder, thread |
| Installation conditions (mechanical) |
not flush |
| Housing material |
Brass |
| Housing coating material |
nickel-plated |
| Active area |
Plastic |
| Material of the nuts |
Brass |
| Gross weight |
78 g |
General data - Features
| Integral system diagnostics, status |
Yes |
| Number of cable wires |
2 |
Mechanical data
| Tightening torque of nuts, maximum |
18 Nm |
Mechanical data - Switching distances according EN IEC 60947-5-3
| Nominal switching distance Sn |
8 mm |
Mechanical data - Connection technique
| Termination |
Screw connection |
| Cable section, maximum |
1 x 1.5 mm² |
Mechanical data - Dimensions
| ISO thread of the sensor |
M18 |
| width across flats |
24 BK |
| Length of sensor |
126 mm |
Ambient conditions
| Degree of protection |
IP65 |
| Ambient temperature |
-25 ... +70 °C |
| Protection class |
II |
Ambient conditions - Insulation values
| Rated impulse withstand voltage Uimp |
4 kV |
Electrical data
| Rated supply frequency, minimum |
45 Hz |
| Rated supply frequency, maximum |
65 Hz |
| Type of voltage range |
AC |
| Operating current, minimum |
10 mA |
| Rated operating voltage |
15 ... 250 VAC |
| Operating current |
500 mA |
| Switching element |
NO contact or NC contact |
| Protection circuit integrated |
inductive interference protection |
| Switching frequency, approx. |
10 Hz |
Electrical data - Digital Output
| Voltage drop Ud, maximum |
4.5 V |
| Current at Voltage drop Ud |
0.2 A |
| Design of control elements |
Two-wire |
| Current leakage Ir, maximum |
1 mA |
Status indication
| Note (Integral System Diagnostics, status ) |
yellow LED |
Note
| Note (General) |
Instead of nuts, a mounting clamp can be provided. Programmable by repositioning the plug-in jumper at the terminal screws |
Language filter
Datasheet
Operating instructions (supplementary sheet/quick guide)
EC Declaration of conformity
CCC certification
Download the latest version of Adobe Reader

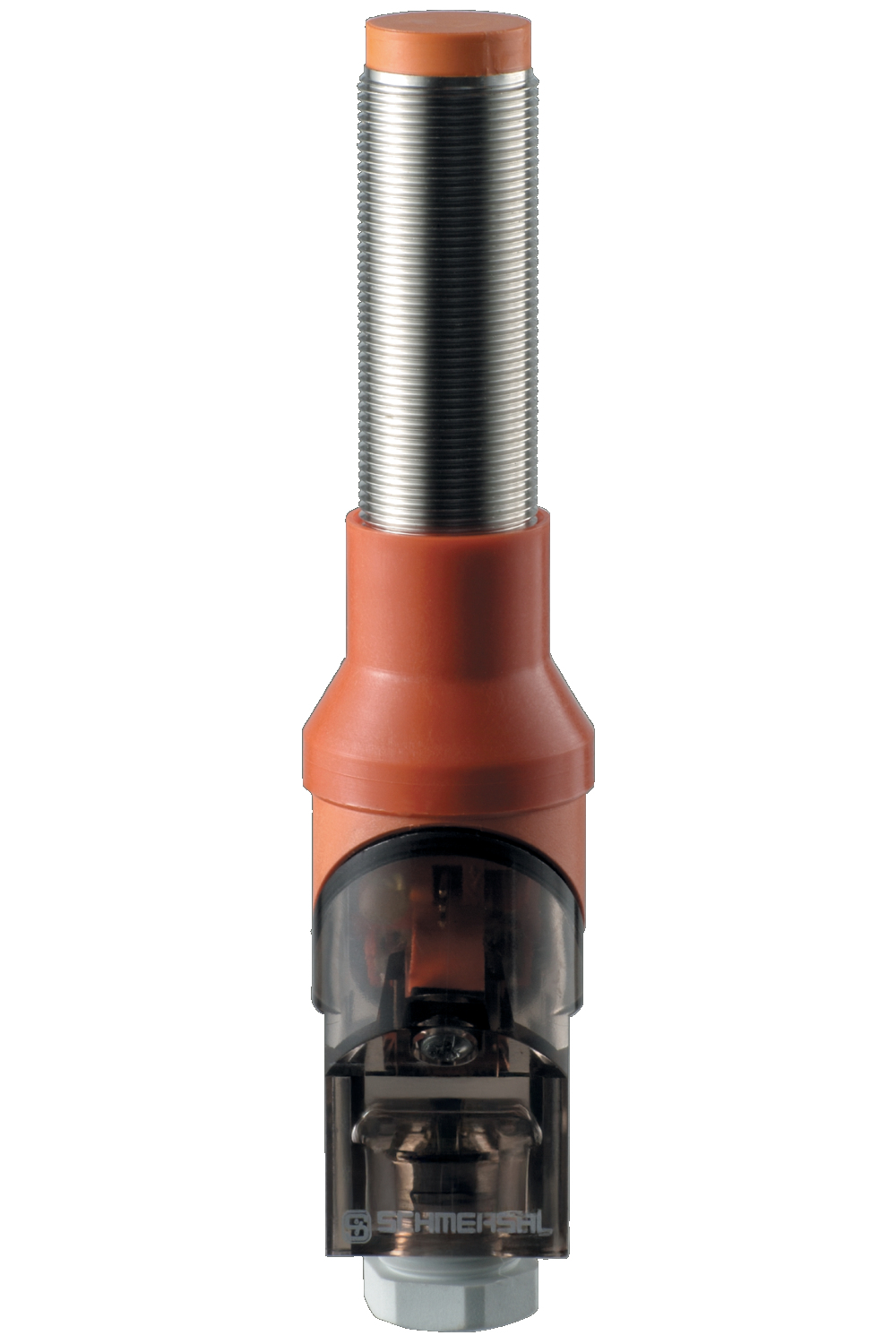

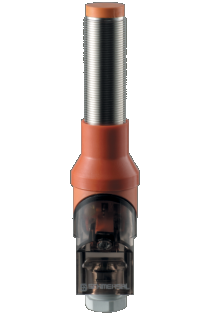

Product picture (catalogue individual photo)
