LF 50-11 P
Item number:
101151758
LF 50-11 P
Item number:
101151758
Ordering data
| Product type description |
LF 50-11 P |
| Article number (order number) |
101151758 |
| EAN (European Article Number) |
4030661163574 |
| eCl@ss number, version 12.0 |
27-27-27-90 |
| eCl@ss number, version 11.0 |
27-27-27-90 |
| eCl@ss number, version 9.0 |
27-27-27-90 |
| ETIM number, version 7.0 |
EC002549 |
| ETIM number, version 6.0 |
EC002549 |
General data
| Housing material |
impact-proof ABS |
| Gross weight |
32 g |
Mechanical data
| Range, maximum |
5,500 mm |
Mechanical data - Connection technique
| Termination |
Connector plug M12, 4-pole |
Mechanical data - Dimensions
| Length of sensor |
17 mm |
| Width of sensor |
50 mm |
| Height of sensor |
63.5 mm |
Ambient conditions
| Degree of protection |
IP67 |
| Ambient temperature |
-20 ... +45 °C |
| Storage and transport temperature |
-20 ... +80 °C |
Electrical data
| Type of voltage range |
DC |
| No-load supply current I0, typical |
30 mA |
| Rated operating voltage |
10 ... 30 VDC |
| Length of cable, maximum |
100 m |
| Switching frequency, approx. |
2,500 Hz |
Electrical data - Digital Output
| Output current, maximum |
200 mA |
| Design of control elements |
p-type |
Status indication
| Indicated operating states |
soiling switching condition Operating voltage |
Scope of delivery
| Scope of delivery |
1x Reflection light barrier |
Language filter
Datasheet
Mounting and wiring instructions
Download the latest version of Adobe Reader

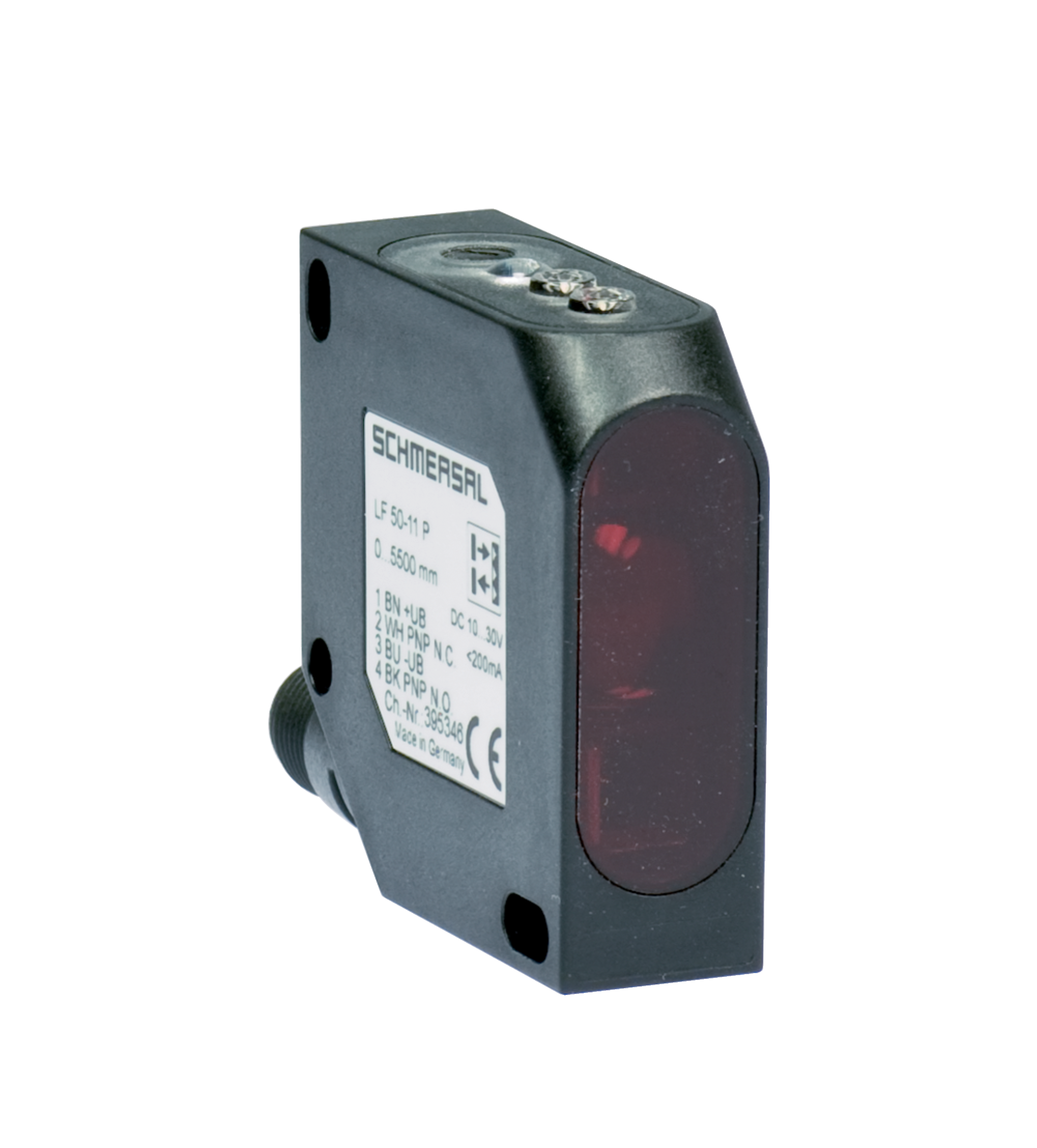

Product picture (catalogue individual photo)
Dimensional drawing basic component
Dimensional drawing basic component
