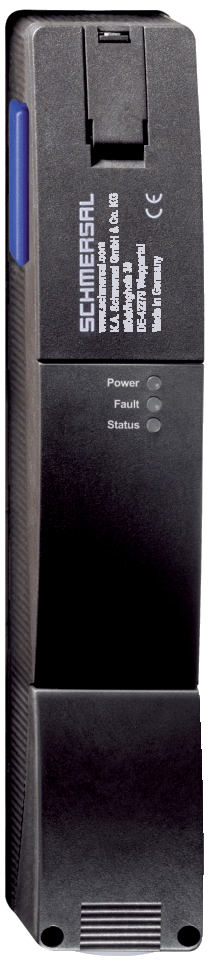

AZM201
- Thermoplastic enclosure
- Max. length of the sensor chain 200 m
- Self-monitoring series-wiring
- Coding in accordance to ISO 14119 by using RFID-Technology
- 3 LEDs to show operating conditions
- Sensor technology permits an offset between actuator and interlock of ± 5 mm vertically and ± 3 mm horizontally
- Suitable for hinged and sliding guards
- Intelligent diagnosis
- Manual release
- Protection class IP66, IP67
- High holding force 2000
- symmetrical construction form, assembly on 40mm profiles
- OSSD safety outputs
- Emergency exit / Emergency release suitable for retrofitting
| Product type description: AZM201(1)-(2)-(3)-T-(4)-(5) |
| (1) | |
| Z | Solenoid interlock monitored |
| B | Actuator monitored |
| (2) | |
| without | Standard coding |
| I1 | Individual coding |
| I2 | Individual coding, multiple teaching |
| (3) | |
| SK | Screw terminals |
| CC | Cage clamps |
| ST2 | Connector plug M12, 8-pole |
| (4) | |
| 1P2PW | 1 diagnostic output, p-type and >2 safety outputs, p-type > (combined diagnostic signal: guard system closed and interlock locked) |
| SD2P | serial diagnostic output and 2 p-type safety outputs |
| (5) | |
| without | Power to unlock |
| A | Power to lock |
Not all component variants, which are possible according to this order code are available and/or technically feasible.
Coding
Termination
Actuator monitored
Idle assignable pushbutton
Solenoid interlock monitored
Power to lock
Power to unlock
Serial diagnostics
System components
Actuator

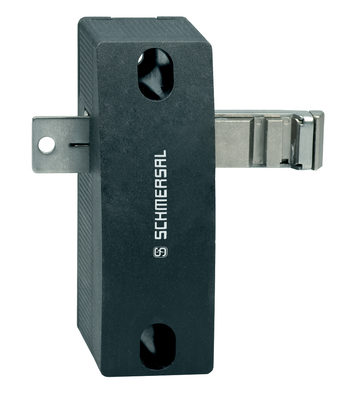

AZ/AZM201-B1-LT
- for left hinged doors
- Actuators with return spring
- Actuator for sliding guards
- Tolerates up to max. 5 mm overtravel
AZ/AZM201-B1-LTP0
- for left hinged doors
- with Emergency exit
- Actuators with return spring
- Actuator for sliding guards
- Tolerates up to max. 5 mm overtravel
AZ/AZM201-B1-RT
- for right hinged doors
- Actuators with return spring
- Actuator for sliding guards
- Tolerates up to max. 5 mm overtravel
AZ/AZM201-B1-RTP0
- for right hinged doors
- with Emergency exit
- Actuators with return spring
- Actuator for sliding guards
- Tolerates up to max. 5 mm overtravel
AZ/AZM201-B30-LTAG1
- for left hinged doors
- with handle
- Actuator for hinged guards
- Easy and intuitive operation
- No risk of injury from protruding actuator
- No supplementary door handles required
- Does not protrude into the door opening
AZ/AZM201-B30-LTAG1P1
- for left hinged doors
- with handle and Emergency exit handle
- Actuator for hinged guards
- Easy and intuitive operation
- No risk of injury from protruding actuator
- No supplementary door handles required
- Does not protrude into the door opening

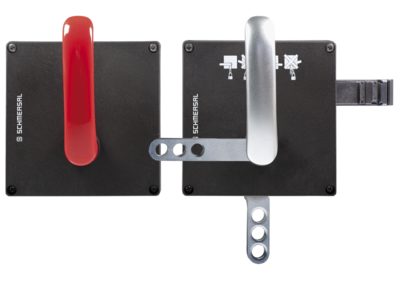

AZ/AZM201-B30-LTAG1P1-SZ
- for left hinged doors
- with handle and Emergency exit handle
- with integrated lockout tag
- Actuator for hinged guards
- Easy and intuitive operation
- No risk of injury from protruding actuator
- No supplementary door handles required
- Does not protrude into the door opening
AZ/AZM201-B30-RTAG1
- for right hinged doors
- with handle
- Actuator for hinged guards
- Easy and intuitive operation
- No risk of injury from protruding actuator
- No supplementary door handles required
- Does not protrude into the door opening
AZ/AZM201-B30-RTAG1P1
- for right hinged doors
- with handle and Emergency exit handle
- Actuator for hinged guards
- Easy and intuitive operation
- No risk of injury from protruding actuator
- No supplementary door handles required
- Does not protrude into the door opening
AZ/AZM201-B30-RTAG1P1-SZ
- for right hinged doors
- with handle and Emergency exit handle
- with integrated lockout tag
- Actuator for hinged guards
- Easy and intuitive operation
- No risk of injury from protruding actuator
- No supplementary door handles required
- Does not protrude into the door opening

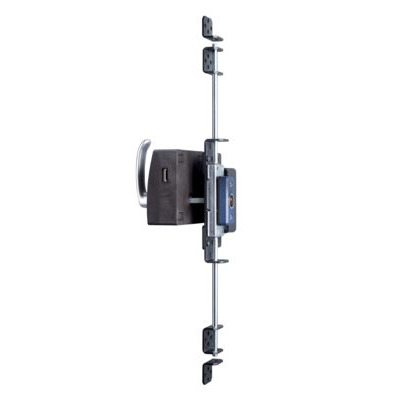

AZ/AZM201-B30-LTAG1P30
- for left hinged doors
- with handle
- Actuator for hinged guards
- Easy and intuitive operation
- No risk of injury from protruding actuator
- No supplementary door handles required
- Does not protrude into the door opening

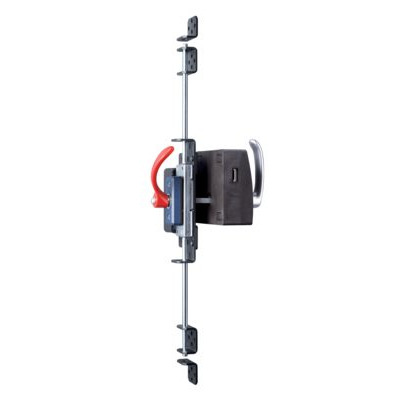

AZ/AZM201-B30-LTAG1P31
- for left hinged doors
- with handle and Emergency exit handle
- Actuator for hinged guards
- Easy and intuitive operation
- No risk of injury from protruding actuator
- No supplementary door handles required
- Does not protrude into the door opening
AZ/AZM201-B30-LTAG1P31-SZ
- for left hinged doors
- with handle and Emergency exit handle
- with integrated lockout tag
- Actuator for hinged guards
- Easy and intuitive operation
- No risk of injury from protruding actuator
- No supplementary door handles required
- Does not protrude into the door opening
AZ/AZM201-B30-RTAG1P30
- for right hinged doors
- with handle
- Actuator for hinged guards
- Easy and intuitive operation
- No risk of injury from protruding actuator
- No supplementary door handles required
- Does not protrude into the door opening
AZ/AZM201-B30-RTAG1P31
- for right hinged doors
- with handle and Emergency exit handle
- Actuator for hinged guards
- Easy and intuitive operation
- No risk of injury from protruding actuator
- No supplementary door handles required
- Does not protrude into the door opening
AZ/AZM201-B30-RTAG1P31-SZ
- for right hinged doors
- with handle and Emergency exit handle
- with integrated lockout tag
- Actuator for hinged guards
- Easy and intuitive operation
- No risk of injury from protruding actuator
- No supplementary door handles required
- Does not protrude into the door opening
AZ/AZM201-B30-RTAG1P20-SZ
- with integrated lockout tag
- No supplementary door handles required
- for right hinged doors
- Easy and intuitive operation
- Does not protrude into the door opening
- Actuator for hinged guards
- with handle and Emergency exit handle
- No risk of injury from protruding actuator

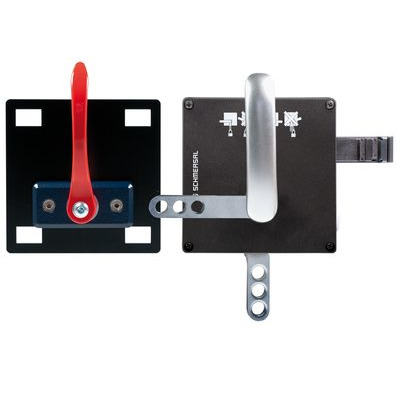

AZ/AZM201-B30-LTAG1P20-SZ
- with integrated lockout tag
- No supplementary door handles required
- for left hinged doors
- Easy and intuitive operation
- Does not protrude into the door opening
- Actuator for hinged guards
- with handle and Emergency exit handle
- No risk of injury from protruding actuator

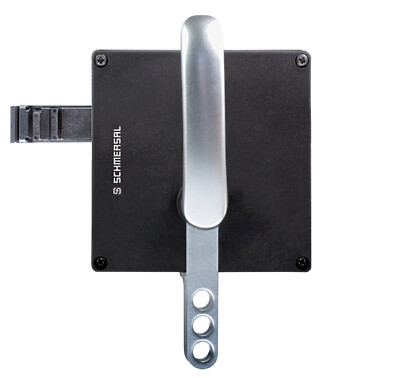

AZ/AZM201-B30-LTAG1-SZ
- Actuator for hinged guards
- Easy and intuitive operation
- No risk of injury from protruding actuator
- No supplementary door handles required
- Does not protrude into the door opening
AZ/AZM201-B30-RTAG1-SZ
- Actuator for hinged guards
- Easy and intuitive operation
- No risk of injury from protruding actuator
- No supplementary door handles required
- Does not protrude into the door opening
AZ/AZM201-B30-RTAG1P20
- One-hand emergency exit,
even in de-energised condition - Actuator for hinged guards
- Easy and intuitive operation
- No risk of injury from protruding actuator
- No supplementary door handles required
- Does not protrude into the door opening
AZ/AZM201-B30-LTIG1P1
- Actuator for hinged guards
- Easy and intuitive operation
- No risk of injury from protruding actuator
- No supplementary door handles required
- Does not protrude into the door opening
AZ/AZM201-B30-RTIG1P1
- Actuator for hinged guards
- Easy and intuitive operation
- No risk of injury from protruding actuator
- No supplementary door handles required
- Does not protrude into the door opening
AZ/AZM201-B30-RTAG2P1
- One-hand emergency exit,
even in de-energised condition - Actuator for hinged guards
- Easy and intuitive operation
- No risk of injury from protruding actuator
- No supplementary door handles required
- Does not protrude into the door opening
AZ/AZM201-B30-LTAG2P1
- Actuator for hinged guards
- Easy and intuitive operation
- No risk of injury from protruding actuator
- No supplementary door handles required
- Does not protrude into the door opening
AZ/AZM201-B30-LTAG1P20
- One-hand emergency exit,
even in de-energised condition - Actuator for hinged guards
- Easy and intuitive operation
- No risk of injury from protruding actuator
- No supplementary door handles required
- Does not protrude into the door opening
AZ/AZM201-B30-LTAG1P25
- One-hand emergency exit,
even in de-energised condition - Actuator for hinged guards
- Easy and intuitive operation
- No risk of injury from protruding actuator
- No supplementary door handles required
- Does not protrude into the door opening
AZ/AZM201-B30-RTAG1P25
- One-hand emergency exit,
even in de-energised condition - Actuator for hinged guards
- Easy and intuitive operation
- No risk of injury from protruding actuator
- No supplementary door handles required
- Does not protrude into the door opening
AZ/AZM201-B30-RTAG2P25
- One-hand emergency exit,
even in de-energised condition - Actuator for hinged guards
- Easy and intuitive operation
- No risk of injury from protruding actuator
- No supplementary door handles required
- Does not protrude into the door opening
AZ/AZM201-B30-RTAG2
- Actuator for hinged guards
- Easy and intuitive operation
- No risk of injury from protruding actuator
- No supplementary door handles required
- Does not protrude into the door opening

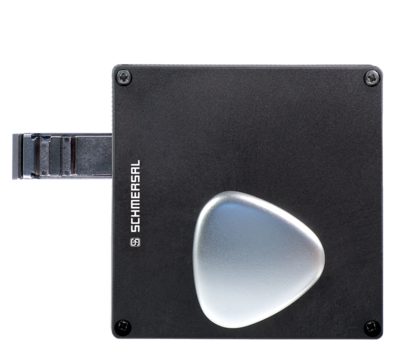

AZ/AZM201-B30-LTAG2
- Actuator for hinged guards
- Easy and intuitive operation
- No risk of injury from protruding actuator
- No supplementary door handles required
- Does not protrude into the door opening

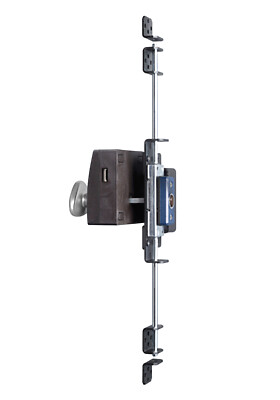

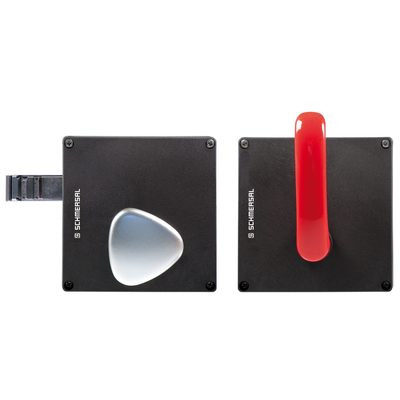

AZ/AZM201-B30-LTAG2P30
- for left hinged doors
- with Rotating knob
- Actuator for hinged guards
- Easy and intuitive operation
- No risk of injury from protruding actuator
- No supplementary door handles required
- Does not protrude into the door opening
AZ/AZM201-B30-RTAG2P25-SZ
- One-hand emergency exit,
even in de-energised condition - Actuator for hinged guards
- Easy and intuitive operation
- No risk of injury from protruding actuator
- No supplementary door handles required
- Does not protrude into the door opening
AZ/AZM201-B30-LTAG2P25-SZ
- One-hand emergency exit,
even in de-energised condition - Actuator for hinged guards
- Easy and intuitive operation
- No risk of injury from protruding actuator
- No supplementary door handles required
- Does not protrude into the door opening
AZ/AZM201-B30-RTAG1P25-SZ
- One-hand emergency exit,
even in de-energised condition - Actuator for hinged guards
- Easy and intuitive operation
- No risk of injury from protruding actuator
- No supplementary door handles required
- Does not protrude into the door opening
AZ/AZM201-B30-LTAG1P25-SZ
- One-hand emergency exit,
even in de-energised condition - Actuator for hinged guards
- Easy and intuitive operation
- No risk of injury from protruding actuator
- No supplementary door handles required
- Does not protrude into the door opening
Accessories
RF-AZM200/201-T
- Subsequent functional expansion of the solenoid interlock AZM200 / AZM201
- Emergency exit retrofit kit
RF-AZM200/201-N
- Emergency release retrofit kit
- Subsequent functional expansion of the solenoid interlock AZM200 / AZM201
- optional lead sealing possible

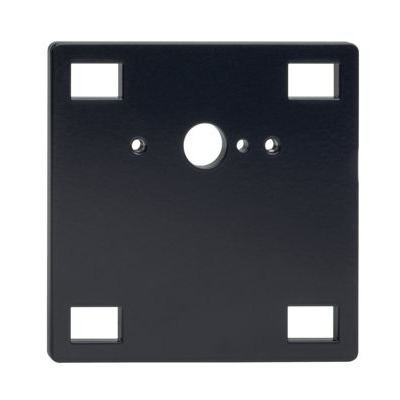

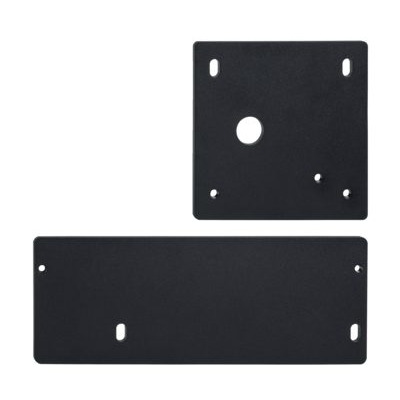

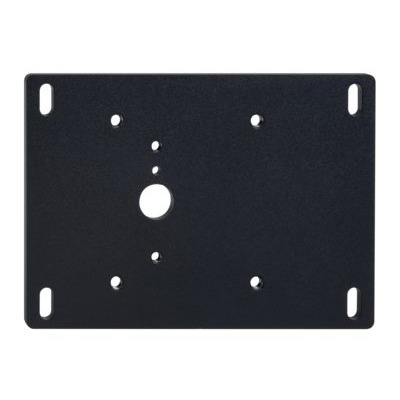

MOUNTING PLATE MP AZ/AZM200-B30
- Mounting plate for easy and quick assembly
- Metal, powder-coated
- suitable for left and right hinged doors

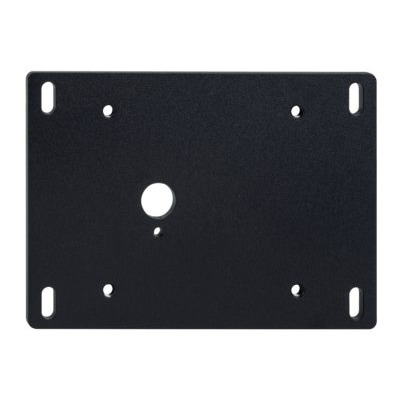

MOUNTING PLATE MP AZ/AZM200-P1
- Mounting plate for easy and quick assembly
- Metal, powder-coated
- suitable for left and right hinged doors
MOUNTING PLATE MP AZ/AZM200-P20
- Mounting plate for easy and quick assembly
- Metal, powder-coated
- suitable for left and right hinged doors
MOUNTING PLATES KPL. MP BDF 200
- Mounting plate for easy and quick assembly
- Metal, powder-coated
- suitable for left and right hinged doors

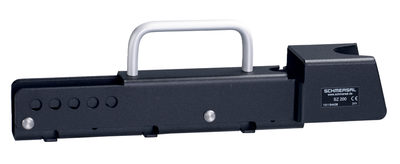

Lockout tag SZ 200
- Lockout tag with 5 circular holes
- Suitable for mounting inside and outside of the hazardous area
- To prevent inadvertent closing, e.g. during maintenance
- For complex plant
- Prevents actuation of the switch
SZ201-1
- Suitable for mounting inside and outside of the hazardous area
- To prevent inadvertent closing, e.g. during maintenance
- For complex plant
- Prevents actuation of the switch
- Lockout tag with 6 circular holes
RF-AZ/AZM 200-B30-SZ
- enables the addition of an integrated lockout tag
- suitable for available B30 actuator systems
- Lockout tag with 3 circular holes
- For complex plant
- Prevents actuation of the switch
TFI-010
- Pre-positioning
- The actuator is independent from the centring device.
- Smooth insertion or retraction of the actuator
TFA-010
- Pre-positioning
- The actuator is independent from the centring device.
- Smooth insertion or retraction of the actuator
