EX-AZM 170-11ZRKA 24VAC/DC-3G/D
Item number:
101188908
EX-AZM 170-11ZRKA 24VAC/DC-3G/D
Item number:
101188908
- IDC method of termination
- Manual release
- Explosion protection for ATEX Zones 2 and 22
- 1 Cable entry M 20 x 1.5
- Interlock with protection against incorrect locking.
- High holding force
- 90 mm x 84 mm x 30 mm
Ordering data
| Product type description |
EX-AZM 170-11ZRKA 24VAC/DC-3G/D |
| Article number (order number) |
101188908 |
| EAN (European Article Number) |
4030661345697 |
| eCl@ss number, version 12.0 |
27-27-26-03 |
| eCl@ss number, version 11.0 |
27-27-26-03 |
| eCl@ss number, version 9.0 |
27-27-26-03 |
| ETIM number, version 7.0 |
EC002593 |
| ETIM number, version 6.0 |
EC002593 |
Explosion protection
| Explosion protection: regulations |
EN IEC 60079-0 EN IEC 60079-15 EN 60079-31 |
| Explosion protection zones |
2 22 |
| Explosion protection category |
3G 3D |
| Explosion protection designation |
D II 3G Ex nC IIB T5 Gc X D II 3D Ex tc IIIC T80°C Dc X |
Manufacturer declaration |
ATEX Zone 2 and 22 |
General data
| Standards |
EN IEC 60947-5-1 |
| Working principle |
electromechanical |
| Housing material |
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing |
| Gross weight |
290 g |
General data - Features
| Power to lock |
Yes |
| Manual release |
Yes |
| Number of auxiliary contacts |
1 |
| Number of safety contacts |
1 |
| Safety classification |
| Standards |
EN ISO 13849-1 |
| Performance Level, up to |
c |
| Category |
1 |
| B10D Normally-closed contact (NC) |
2,000,000 Operations |
| Note |
Electrical life on request. |
| B10D Normally-open contact (NO) |
1,000,000 Operations |
| Mission time |
20 Year(s) |
| Safety classification - Fault exclusion |
| Performance Level, up to |
d |
| Category |
3 |
| Note |
for 2-channel use and with suitable logic unit. |
| Mission time |
20 Year(s) |
Mechanical data
| Mechanical life, minimum |
1,000,000 Operations |
| Impact energy, maximum |
1 J |
| Energy impact (protective case), maximum |
7 J |
| Holding force |
1,000 N |
| Latching force |
30 N |
| Positive break travel |
11 mm |
| Positive break force, minimum |
8.5 N |
| Actuating speed, maximum |
1 m/s |
| Mounting |
Screws |
| Type of the screw head |
Flat head screw |
| Tightening torque of the fastening screws for the housing cover, minimum |
0.4 Nm |
| Tightening torque of the fastening screws for the housing cover, maximum |
0.5 Nm |
| Tightening torque of the cable gland |
4.5 Nm |
Mechanical data - Connection technique
| Termination |
IDC method of termination |
| Cable cross-section of the cable glands, minimum |
6.5 mm |
| Cable cross-section of the cable glands, maximum |
12 mm |
| Cable section, minimum |
2 x 1.0 mm², flexible |
| Cable section, maximum |
1 x 1 mm², flexible |
Mechanical data - Dimensions
| Length of sensor |
30 mm |
| Width of sensor |
90 mm |
| Height of sensor |
84 mm |
Ambient conditions
| Degree of protection |
IP67 |
| Ambient temperature |
-15 ... +45 °C |
| Note (Relative humidity) |
non-condensing non-icing |
Ambient conditions - Insulation values
| Rated insulation voltage Ui |
250 VAC |
| Rated impulse withstand voltage Uimp |
4 kV |
Electrical data
| Thermal test current |
2 A |
| Rated control voltage |
24 VAC |
| Rated control voltage |
24 VDC |
| Utilisation category AC-15 |
230 VAC |
| Utilisation category AC-15 |
2 A |
| Utilisation category DC-13 |
24 VDC |
| Utilisation category DC-13 |
2 A |
| Electrical power consumption, maximum |
10 W |
| Switching element |
NO contact, NC contact |
| Switching principle |
Slow action |
| Maximum switching frequency |
1,000 /h |
| Material of the contacts, electrical |
Silver |
Electrical data - Magnet control
| Magnet switch-on time |
100 % |
| Test pulse duration, maximum |
5 ms |
| Test pulse interval, minimum |
50 ms |
Scope of delivery
| Scope of delivery |
Actuator must be ordered separately. Including Ex-certified screwed cable gland and screw plug |
Note
| Note (General) |
This type termination (IDC) method enables simple connetion of flexible conductors without the need for the use of conductor ferrules |
| Note (Manual release) |
bottom For manual release using M5 triangular key, available as accessory |
Language filter
Datasheet
Operating instructions and Declaration of conformity
Brochure
SISTEMA-VDMA library
Download the latest version of Adobe Reader

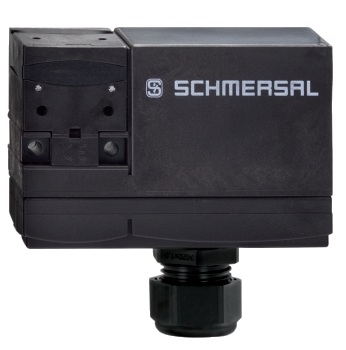

Product picture (catalogue individual photo)
Dimensional drawing basic component
Switch travel diagram
Contact closed
Contact open
Setting range
Latching point
Positive opening path/angleDiagram
Monitoring the interlock to EN ISO 14119
Positive break NC contact
Actuated
Not actuated
Normally-open contact
Normally-closed contact
Operating principle
Assembly example
ID: kazm1m06
Actuator
131123391 ACTUATOR AZM 170-B6
- Particularly suitable for hinged guards
- The direction of actuation can be selected by applicable insertion of the insert
131122895 Actuator AZM 17/170-B5
- Particularly suitable for sliding doors
- Particularly suitable for sliding doors
101139789 ACTUATOR AZ 17/170-B15
- Particularly suitable for sliding doors
- Particularly suitable for sliding doors
101139788 ACTUATOR AZ 17/170-B11
- Particularly suitable for sliding doors
101137406 ACTUATOR AZ 17/170-B1-2245
- Straight actuator with rubber mounting
- Damps vibration on guard device
- Particularly suitable for sliding doors
131122893 ACTUATOR AZ 17/170-B1
- Particularly suitable for sliding doors
- Straight actuator
- Particularly suitable for sliding doors
101175201 ACTUATOR AZM 170-B25-L-G1
- Door hinge on left-hand side (View point towards the hazardous area)
- with Star grip
- Ergonomic operation
- No supplementary door-handle required
- No protruding actuator
- Simple mounting
- Several door-handles available
- Possibility to mount the own handles using a default square screw (8 mm)
101175227 ACTUATOR AZM 170-B25-L-G2
- Door hinge on left-hand side (View point towards the hazardous area)
- with T-grip
- Ergonomic operation
- No supplementary door-handle required
- No protruding actuator
- Simple mounting
- Several door-handles available
- Possibility to mount the own handles using a default square screw (8 mm)
101175200 ACTUATOR AZM 170-B25-R-G1
- Door hinge on right-hand side (View point towards the hazardous area)
- with Star grip
- Ergonomic operation
- No supplementary door-handle required
- No protruding actuator
- Simple mounting
- Several door-handles available
- Possibility to mount the own handles using a default square screw (8 mm)
101175226 ACTUATOR AZM 170-B25-R-G2
- Door hinge on right-hand side (View point towards the hazardous area)
- with T-grip
- Ergonomic operation
- No supplementary door-handle required
- No protruding actuator
- Simple mounting
- Several door-handles available
- Possibility to mount the own handles using a default square screw (8 mm)
Accessories
101100887 TK-M5
- For manual release using M5 triangular key, available as accessory
- For maintenance, installation, etc.
101208493 AZM 170-B ZENTRIERHILFE
- for AZ 17 and AZM 170
replacement product
103049492 EX-AZM 170-11ZRKA-P-3GD
- IDC method of termination
- Manual release
- Explosion protection for ATEX Zones 2 and 22
- 1 Cable entry M 20 x 1.5
- Interlock with protection against incorrect locking.
- High holding force
- 90 mm x 84 mm x 30 mm
103049508 EX-AZM 170-11ZRKA-R/P-3GD
- IDC method of termination
- Manual release
- Explosion protection for ATEX Zones 2 and 22
- 1 Cable entry M 20 x 1.5
- Interlock with protection against incorrect locking.
- High holding force
- 90 mm x 84 mm x 30 mm
EU Conformity Declaration
| EU-Konformitätserklärung |  |
| Original | K.A. Schmersal GmbH & Co. KG Möddinghofe 30 42279 Wuppertal Germany Internet: www.schmersal.com |
| Erklärung: | Hiermit erklären wir, dass die nachfolgend aufgeführten Bauteile aufgrund der Konzipierung und Bauart den Anforderungen der unten angeführten Europäischen Richtlinien entsprechen. |
| Bezeichnung des Bauteils: | EX-AZM170 EX-AZM170 I |
| Typ: | siehe Typenschlüssel |
| Kennzeichnung: | D II 3G Ex nC IIB T5 Gc D II 3D Ex tc IIIC T80°C Dc |
| Beschreibung des Bauteils: | Verriegelung mit elektromagnetischer Zuhaltung für Sicherheitsfunktionen |
| Einschlägige Richtlinien: | Maschinenrichtlinie | 2006/42/EG |
| EMV-Richtlinie | 2014/30/EU | |
| Explosionsschutzrichtlinie (ATEX) | 2014/34/EU | |
| RoHS-Richtlinie | 2011/65/EU |
| Angewandte Normen: | EN 60947-5-1:2017 EN ISO 14119:2014 EN IEC 60079-0:2018 EN IEC 60079-15:2019 EN 60079-31:2014 |
| Bevollmächtigter für die Zusammenstellung der technischen Unterlagen: | Oliver Wacker Möddinghofe 30 42279 Wuppertal |
| Ort und Datum der Ausstellung: | Wuppertal, 10. Mai 2022 |
 |
| Rechtsverbindliche Unterschrift Philip Schmersal Geschäftsführer |
Schmersal India Pvt. Ltd., Plot No - G-7/1, Ranjangaon MIDC, Tal. - Shirur, Dist.- Pune 412 220
The details and data referred to have been carefully checked. Images may diverge from original. Further technical data can be found in the manual. Technical amendments and errors possible.
