IFL 5-18-01A
Item number:
101141569
IFL 5-18-01A
Item number:
101141569
Downloads
TraceParts
CAD Data
ePLAN
Data
CADENAS
CAD Data
SISTEMA
Data
| Product type description: IFL (1)-(2)(3)-(4)(5)(6)(7)-(8) |
| (1) | |
| 215 | Switching distance 5 mm |
| 8 | Switching distance 8 mm |
| 10 | Switching distance 10 mm |
| (2) | |
| 18 | Cylinder, thread M18, metal |
| 180 | Cylinder, thread M18, plastic |
| (3) | |
| without | Standard body |
| M | Miniature body |
| L | Long design |
| (4) | |
| 01 | Opener (NC) |
| 10 | Normally open contact (NO) |
| 10/01 | NO contact / NC contact with wiring compartment |
| 11 | 1 NO contact / 1 NC contact antivalent |
| (5) | |
| without | Cable |
| ST | Male connector |
| T | Conductor with strain relief |
| A | Alternating current/direct current AC/DC |
| D | DC 2-wire |
| (6) | |
| without | Standard connector version |
| 2 | Alternative conector version |
| (7) | |
| N | n-type |
| P | p-type |
| (8) | |
| 2033 | Stainless steel enclosure |
| 2130 | Can be used up to +130 C, without LED switching conditions display |
Not all component variants, which are possible according to this order code are available and/or technically feasible.
- Metal enclosure
- AC/DC 2-wire
- Design M 18 x 1
Ordering data
| Product type description |
IFL 5-18-01A |
| Article number (order number) |
101141569 |
| EAN (European Article Number) |
4030661122649 |
| eCl@ss number, version 12.0 |
27-27-40-01 |
| eCl@ss number, version 11.0 |
27-27-01-01 |
| eCl@ss number, version 9.0 |
27-27-01-01 |
| ETIM number, version 7.0 |
EC002714 |
| ETIM number, version 6.0 |
EC002714 |
Approvals - Standards
|
CCC |
General data
| Standards |
DIN VDE 0660-208 EN IEC 60947-5-2 |
| Housing construction form |
Cylinder, thread |
| Installation conditions (mechanical) |
flush |
| Housing material |
Brass |
| Housing coating material |
nickel-plated |
| Active area |
Plastic |
| Material of the nuts |
Brass |
| Gross weight |
124 g |
General data - Features
| Integral system diagnostics, status |
Yes |
| Number of cable wires |
2 |
Mechanical data
| Tightening torque of nuts, maximum |
18 Nm |
Mechanical data - Switching distances according EN IEC 60947-5-3
| Nominal switching distance Sn |
5 mm |
Mechanical data - Connection technique
| Length of cable |
2 m |
| Termination |
Cable H03VV-F |
| Wire cross-section |
0.5 mm2 |
| Material of the Cable mantle |
PVC |
Mechanical data - Dimensions
| ISO thread of the sensor |
M18 |
| width across flats |
24 BK |
| Length of sensor |
76 mm |
Ambient conditions
| Degree of protection |
IP67 |
| Ambient temperature |
-25 ... +70 °C |
| Resistance to vibrations |
10 … 55 Hz, amplitude 1 mm |
| Restistance to shock |
30 g / 11 ms |
| Protection class |
0 |
Electrical data
| Type of voltage range |
AC |
| No-load supply current I0, typical |
0.5 mA |
| Rated operating voltage |
15 ... 250 VAC |
| Operating current |
300 mA |
| Switching element |
Opener (NC) |
| Protection circuit integrated |
inductive interference protection Protection against polarity reversal |
| Switching frequency, approx. |
15 Hz |
Electrical data - Digital Output
| Voltage drop Ud, maximum |
4 V |
| Current at Voltage drop Ud |
0.3 A |
| Design of control elements |
Two-wire |
Status indication
| Note (Integral System Diagnostics, status ) |
yellow LED |
Note
| Note (General) |
Instead of nuts, a mounting clamp can be provided. |
Language filter
Datasheet
Operating instructions (supplementary sheet/quick guide)
EC Declaration of conformity
CCC certification
Download the latest version of Adobe Reader

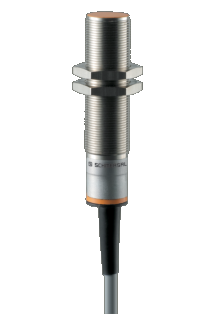

Product picture (catalogue individual photo)
