IFL-N-4-12-10STP -2033

Item number: 101148143
Archive
IFL-N-4-12-10STP -2033

Downloads

TraceParts CAD Data
ePLAN Data
CADENAS CAD Data
SISTEMA Data
  • Design M12

Ordering data

Product type description

IFL-N-4-12-10STP -2033
Article number (order number)

101148143
EAN (European Article Number)

4030661287034
eCl@ss number, version 12.0

27-27-40-01
eCl@ss number, version 11.0

27-27-01-01
eCl@ss number, version 9.0

27-27-01-01
ETIM number, version 7.0

EC002714
ETIM number, version 6.0

EC002714

General data

Standards

DIN VDE 0660-208

EN IEC 60947-5-2
Housing construction form

Cylinder, thread
Installation conditions (mechanical)

not flush
Housing material

Stainless steel
Active area

Plastic
Material of the nuts

Stainless steel
Gross weight

30 g

General data - Features

Integral system diagnostics, status

Yes
Number of cable wires

3

Mechanical data - Switching distances

Nominal switching distance Sn

4 mm
Note (switching distance)

All switching distances in accordance EN IEC 60947-5-2

Mechanical data - Connection technique

Length of cable

2 m
Termination

Connector M12

Mechanical data - Dimensions

ISO thread of the sensor

M12
Length of sensor

65 mm

Ambient conditions

Degree of protection

IP67
Resistance to vibrations

10 … 55 Hz, amplitude 1 mm
Restistance to shock

30 g / 11 ms
Protection class

II

Electrical data

Type of voltage range

DC
No-load supply current I0, typical

17 mA
Operating current

200 mA
Switching element

Normally open contact (NO)
Protection circuit integrated

inductive interference protection

Protection against polarity reversal

Surge protection

Max. fuse rating

suppressed switch-on fault impulse

wire-breakage monitoring

Voice transmission protection

Switching frequency, approx.

800 Hz

Electrical data - Digital Output

Voltage drop Ud, maximum

2.5 V
Design of control elements

p-type
Current leakage Ir, maximum

0.01 mA

Status indication

Note (Integral System Diagnostics, status )

yellow LED

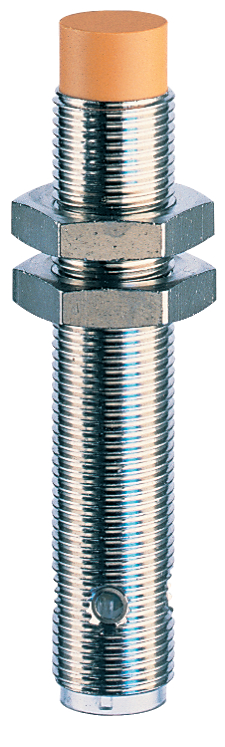

Product picture (catalogue individual photo)

kifl4f26

ID: kifl4f26

| 184.8 kB | .jpg | 79.375 x 263.525 mm - 225 x 747 px - 72 dpi

| 219.0 kB | .png | 74.083 x 245.886 mm - 210 x 697 px - 72 dpi

| 39.7 kB | .jpg | 37.042 x 123.472 mm - 105 x 350 px - 72 dpi

Dimensional drawing basic component

1ifl4g33

ID: 1ifl4g33

| 20.2 kB | .cdr |

| 3.3 kB | .png | 74.083 x 51.153 mm - 210 x 145 px - 72 dpi

| 71.1 kB | .jpg | 352.778 x 244.475 mm - 1000 x 693 px - 72 dpi

Diagram

id3sk09

ID: id3sk09

| 32.8 kB | .cdr |

| 44.0 kB | .jpg | 352.778 x 146.756 mm - 1000 x 416 px - 72 dpi

| 2.2 kB | .png | 74.083 x 30.692 mm - 210 x 87 px - 72 dpi
